Data Center

  • The Netgate XG-1537 1USecurity Gateway Appliance is an excellent solution for medium to large business to provide flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc. With preloaded pfSense software and 10Gbps SFP+ ports, the XG-1537 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance.





    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    Technical Specifications

    CPU Intel "Xeon-DE" D-1537, 1.7 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 8GB DDR4 UDIMM
    Storage Options 256GB M.2 SSD
    2x 150GB 2.5" SSD RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GbE SFP+
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 8 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 0°C to 60°C (32°F to 140°F)
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus

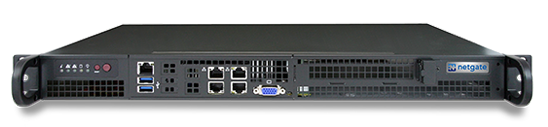

  • The Netgate XG-1541 1U  Security Gateway Appliance is an excellent solution for medium to large business to provide flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc. With preloaded pfSense software, the XG-1541 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance.



    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • 1U form-factor to conserve rack space with a High Availability option available.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • Medium to Large Sized Networks with 1U rack mount cabinets
    • Medium to Large Sized Branch Office with heavy loads
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • High-Speed 10 Gigabit Connections
    • Multiple VPN Connections
    • High speed connections with IDS/IPS functionality


    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • IDS/IPS : Intrusion Detection & Prevention, autosense
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information



    Technical Specifications

    CPU Intel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 16GB DDR4 UDIMM
    Storage Options 256GB Micron m.2 SSD
    2x 256GB m.2 SATA RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GBase-T
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 16 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 10°C to 35°C
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • The Netgate XG-7100 DT, Desktop pfSense Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and Snort/Suricata IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the XG-7100 Desktop is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built to provide a high level of I/O throughput and optimal performance.



    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    Technical Specifications

    CPU Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist & AES-NI
    CPU Cores 4
    Memory Options 8GB DDR4 Non ECC
    16GB DDR4 SODIMM Additional Memory (24GB Total)
    Storage Options 32GB eMMC Flash
    256GB Micron M.2 SATA SSD
    Network Interfaces 2x 10GbE Intel x553 SFP+ Ports
    8-port 1Gbps Marvell 88E6190 switch uplinked at 5 Gbps to Intel SoC (2x 2.5 Gbps) for LAN.
    Network Expansion Options None
    USB Ports 1X 3.0,  2X 2.0
    Console Port Mini USB
    Max Active Connections 8 Million
    Power External ITE P/S AC/DC 100-240V, 50-60Hz, 12V 5A
    Case Desktop case
    Dimensions 7" (178mm) x 8" (203mm) x 2" (51mm)
    Cooling 1x Low-noise active control chassis fan
    Operating Temperature 0°C (32°F) to 55°C (131°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • The NetGate XG-7100 1U pfSense Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the NetGate XG-7100 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built to provide a high level of I/O throughput and optimal performance.



    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information


    Technical Specifications

    CPU Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist
    CPU Cores 4
    Memory Options 8GB DDR4 Non ECC
    16GB DDR4 SODIMM Additional Memory (24GB Total)
    Storage Options 32GB eMMC Flash
    256GB M.2 SATA SSD
    Network Interfaces 2x 10GbE Intel x553 SFP+ Ports
    8-port 1Gbps Marvell 88E6190 switch uplinked at 5 Gbps to Intel SoC (2x 2.5 Gbps) for LAN.
    Network Expansion Options None
    USB Ports 1X 3.0
    2X 2.0
    Console Port Mini USB
    Max Active Connections 8.0 Million
    Power Internal AC/DC 100-240V, 50-60 Hz
    Case 19" 1U rack mount
    Dimensions 19" (483mm) x 1.75" (44mm) x 8.5" (216mm)
    Cooling Active
    Operating Temperature 0°C (32°F) to 60°C (140°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus
