High-Density Unified Storage Appliances

The TrueNAS® R-Series line of storage appliances combines the powerful features of OpenZFS with value-oriented, single controller hardware. Available in both all-flash and hybrid models, these systems feature excellent density and price-performance. The TrueNAS R-Series is available in three editions: CORE, Enterprise, and SCALE with Bronze and Silver support options available for Enterprise installations. . , visit the Software Status Page.

World’s Most Popular Storage OS
Free and Open Source
Unified Storage Built on OpenZFS
Installs on Hardware or VMs
Community-Supported

Combined Single & Multi-Node Edition
Scale-Out SAN/NAS/Object Software & Appliances
Linux Containers and VMs
128-Bit Open ZFS File System
Free To Download & Use
Community or Enterprise Support

Single & Dual Node Edition
Scale-Up SAN/NAS/Object Storage Appliances
High Availability
128-Bit Open ZFS File System
Enterprise Reliability & Features
24×7 Professional Support



Get More for Your Storage Budget

The R-Series appliance line is designed for storage requirements that need to optimize for per-dollar performance and scalability. Whether used as a single NAS/SAN/object target, or as nodes in a scale-out cluster, the R-Series is versatile storage that maximizes value.

Read more about R series


Storage You Can Rely On

The TrueNAS M-Series offers unmatched data reliability in both software and hardware. The OpenZFS file system is the last word in data protection with copy-on-write and bit-rot detection ensuring the integrity of your data from write to read. Dual controllers and high- availability options ensure over 99.999% uptime to maintain business operations and keep applications running around the clock.

Read more about ZFS


Data Management: Simplified.

Simplify your data management with powerful features including data protection, snapshots, replication, scrubbing, data reduction, and security. Integrated enclosure management capabilities save time and effort by making it easy to monitor the state of your drives from a single screen.



Scale Up or “SCALE” Out

Begin building the foundation of your scale-out, hyper-converged virtualization infrastructure with SCALE or use Enterprise for high-performance, ultra-reliable local HA storage. Expand to over 20 PB on a single M60 head unit with support for up to 12 expansion shelves, or use TrueNAS SCALE to cluster over 100 systems together for massive capacity and performance.

US-Based International support and Local onsite support

Every TrueNAS Enterprise system is fully backed by our dedicated and top-rated professional support team. Enterprise support services with 7x24×365 coverage and onsite support options are backed by a global spares network to ensure international users receive the same great service. Our Hong Kong, China, Vietnam team are providing local and onsite support ...



Architecture

The M-Series is a 4U~52U system with dual controllers. Each controller has NVDIMMs for extremely low latency write caching and there is a high bandwidth PCIe interconnect between controllers to synchronize the NVDIMMs. The controllers share access to 24 x 3.5” drives (HDD, SSD, RI-SSD) and also can share 4 low latency NVMe drives which can be used for metadata or persistent read cache.



TrueNAS R10
TrueNAS R20

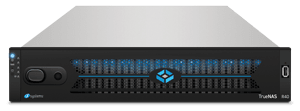

TrueNAS R40
TrueNAS R50
TrueNAS R30
Height 1U 2U-10U 2U-6U 4U-12U 1U
Chassis Depth 27”, 686mm 26”, 660mm 26”, 660mm 39”, 990mm 33”, 840mm
Controllers Single Single Single Single Single
Drive Bays 16 x 2.5" 7mm 12 x 3.5", 2 x 2.5" 48 x 2.5" 7mm 48 x 3.5", 4 x 2.5" (NVMe) 16 x NVMe
CPU per Controller 6 - 10 Cores 6 -16 Cores 6 - 16 Cores 6 - 16 Cores 16 - 64 Cores
DRAM per Controller 32 GB - 96 GB 32 GB - 192 GB 64 GB - 192 GB 64 GB - 192 GB up to 1024 GB
Read & Write Cache   2 x 960 GB SATA SSDs   4 x 3.2 TB NVMe SSD
Networking 2x 10/25/40/100GbE 2x 10/25/40/100GbE 2x 10/25/40/100GbE 2x 10/25/40/100GbE 2 or 4x 10/25/40/100 Gbe
  2 or 6 x 10GBaseT or SR 2 or 6 x 10GBaseT or SR 2 or 6 x 10GBaseT or SR 2 or 6 x 10GBaseT or SR 2x 10GBase-T
Fibre Channel (option) 2 x 32 Gb 2 x 32 Gb 2 x 32 Gb 2 x 32 Gb
Expansion Shelves Supported 0 2 x ES60 2 x ES24F 2 x ES102
Max Drives Supported 16 132 96 252 16
Max Throughput 3 GB/s 8 GB/s 10 GB/s 10 GB/s 20 GB/s
Storage All-Flash Hybrid All-Flash Hybrid All-NVMe
Max Raw Capacity 120 TB 1.5 PB 720 TB 5 PB 240 TB
Max Effective Capacity* 400 TB 4 PB 2 PB 10 PB 300 TB
Read & Write Cache   2 x 960 GB SATA SSDs   4 x 3.2 TB NVMe SSD

Certifications

 Veeam Ready
Performance Varies based on configuration. Contact us : sales_team @ tops.hk, Tel:+852.23120878
Pricing Guidance Starting at US$4,000 with 1yr Bronze Support Starting at US$4,700 with 1yr Bronze Support Starting at US$7,000 with 1yr Bronze Support Starting at US$14,000 with 1yr Bronze Support Starting at US$12,000 with 1yr Bronze Support
  Guidance of approximately US$50/TB for Hard Drive capacity and approximately US$300-350/TB for Flash capacity. Prices vary based on configuration.
Datasheets
TrueNAS R-Series Datasheet, TrueNAS R30 Datasheet, TrueNAS Expansion Shelf Datasheet
  * Maximum effective capacity assumes typical data reduction through compression and deduplication

The M-Series is designed for maximum ZFS performance and five 9’s availability while keeping the storage affordable. With advanced read and write caching and expansion to over 1200 drives, the M-Series is ideal for multi-PB storage. For performance applications, all-flash storage with TLC or QLC flash can provide low latency and very high IOPS at industry-leading prices. Contact us for a system design and quote that will fit within your budget. Call us at +852.23120878 to Get A Quote
