Mikrotik CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

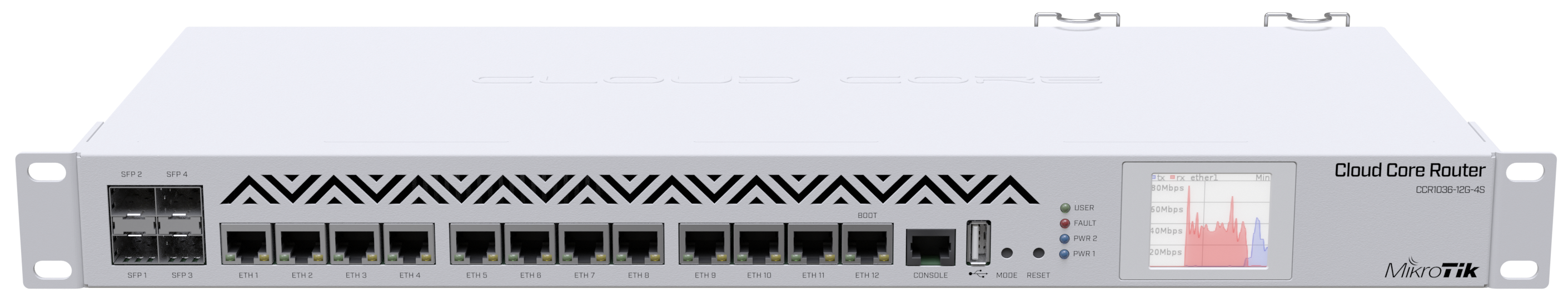

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

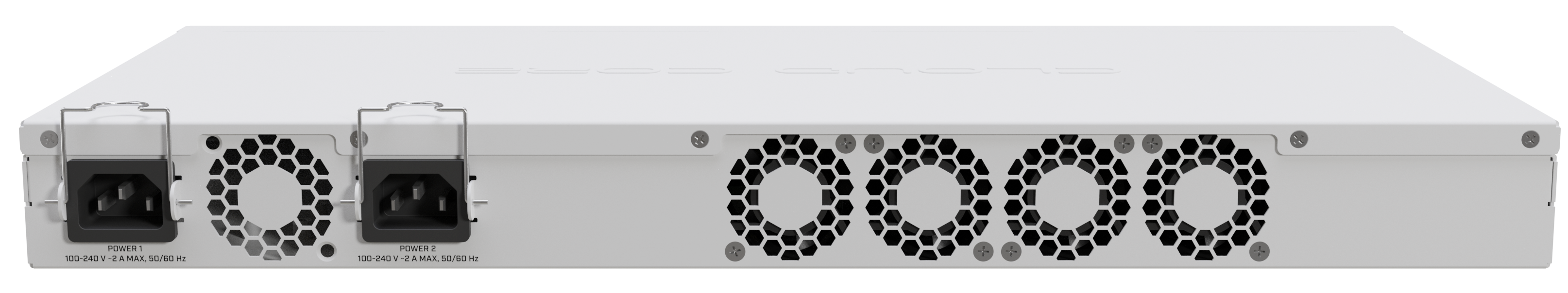

The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.

Mikrotik CCR1036-12G-4S : technology tested by time, built for the future.

Product Manual


Product code CCR1036-12G-4S
Architecture TILE
CPU TLR4-03680
CPU core count 36
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 4 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Ethernet test results

CCR1036-12G-4Sr2 Tile 36 core max possible throughput test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 1300.4 15792.1 3759.4 15398.5 28808.0 14749.7
Bridging 25 bridge filter rules 1300.4 15792.1 3760.4 15402.6 5163.5 2643.7
Routing none (fast path) 1300.4 15792.1 3762.4 15410.8 28808.0 14749.7
Routing 25 simple queues 1300.4 15792.1 3762.4 15410.8 7643.1 3913.3
Routing 25 ip filter rules 1300.4 15792.1 3033.9 12426.9 3049.7 1561.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
