Mikrotik CRS354-48 ports

Mikrotik CRS354-48G-4S+2Q

The new Mikrotik CRS328-4C-20S-4S+RM is a 48 independent port switch with a combo group.

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further.

The new Mikrotik CRS328-4C-20S-4S+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! <

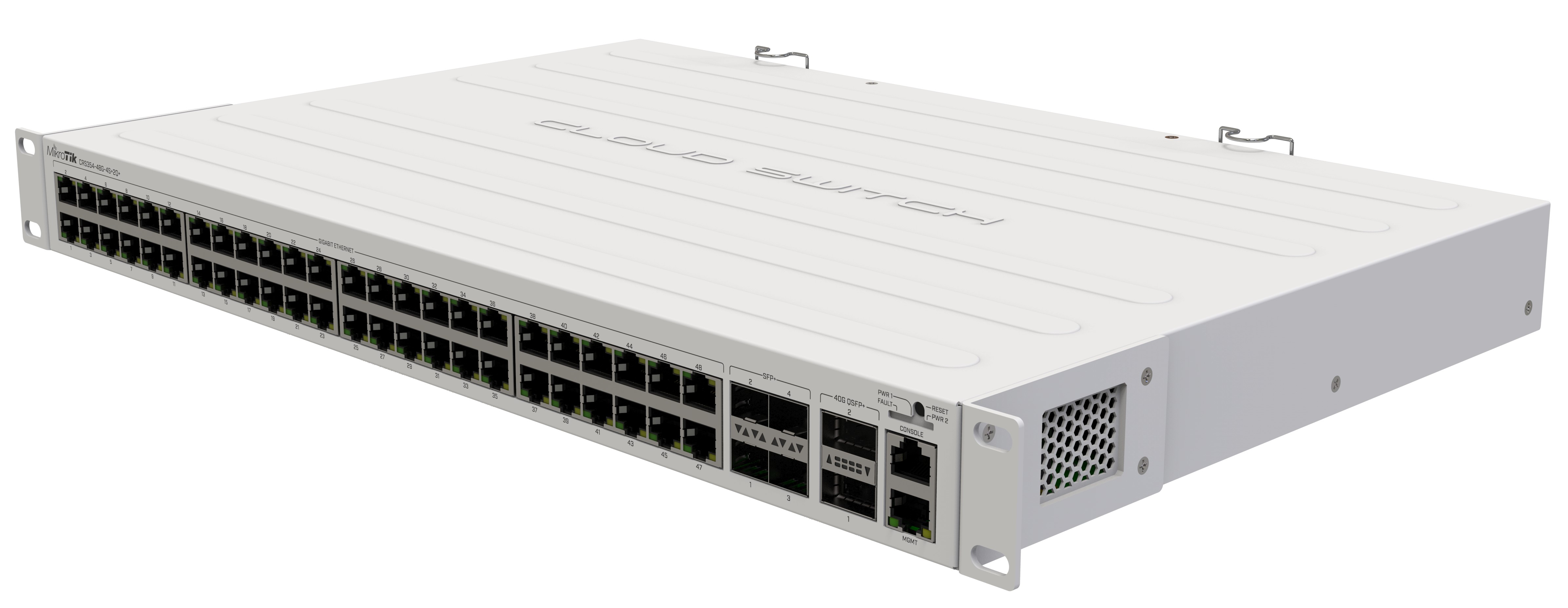

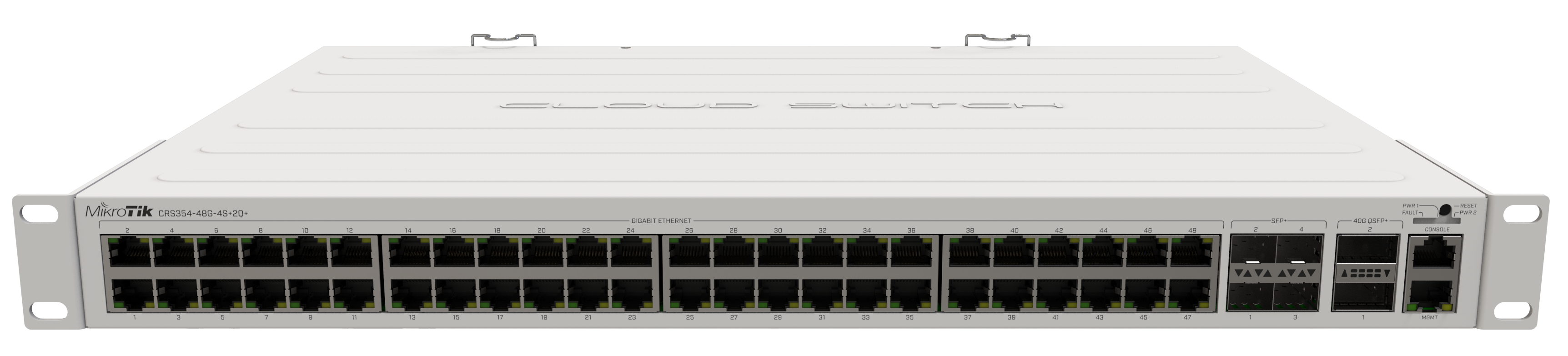

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Product Manual

HARDWARE SPECIFICATIONS:

Details
Product code	CRS354-48G-4S+2Q+RM
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	297 x 443 x 44 mm
RouterOS license	5
Operating System	SwOS / RouterOS (Dual boot)
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C

Switching results

CRS354-48G-4S+2Q+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	13,662.2	165,914.0	39,497.2	161,780.5	250,148.8	128,076.2
Switching	Non blocking Layer 2 capacity	13,662.2	331,828.1	39,497.2	323,560.9	250,148.8	256,152.4
Switching	Non blocking Layer 1 throughput	13,662.2	168,100.0	39,497.2	168,100.0	250,148.8	168,100.0
Switching	Non blocking Layer 1 capacity	13,662.2	336,200.0	39,497.2	336,200.0	250,148.8	336,200.0

Ethernet test results

CRS354-48G-4S+2Q+RM		QCA9531 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	37,4	454.2	82,8	339.1	162,5	83.2
Bridging	25 bridge filter rules	33,8	410.5	47,8	195.8	75,6	38.7
Routing	none (fast path)	37,2	451.8	73,3	300.2	144,9	74.2
Routing	25 simple queues	36,4	442.0	52,4	214.6	54,4	27.9
Routing	25 ip filter rules	33,8	410.5	41,4	169.6	41,7	21.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
