Manage Your Data Like a Pro
There are many compact NAS options on the market, but only one gives you access to the same tools used by enterprise storage professionals for backing up and sharing your movies, photos, VMs, and files from a single device. The small but mighty TrueNAS® Minis stand apart with unmatched power to provide your data with the protection and performance it truly deserves., visit the Software Status Page.
World’s Most Popular Storage OS
Free and Open Source
Unified Storage Built on OpenZFS
Installs on Hardware or VMs
Community-Supported
Combined Single & Multi-Node Edition
Scale-Out SAN/NAS/Object Software & Appliances
Linux Containers and VMs
128-Bit Open ZFS File System
Free To Download & Use
Community or Enterprise Support
Single & Dual Node Edition
Scale-Up SAN/NAS/Object Storage Appliances
High Availability
128-Bit Open ZFS File System
Enterprise Reliability & Features
24×7 Professional Support
Manage Your Data Like a Pro
There are many compact NAS options on the market, but only one gives you access to the same tools used by enterprise storage professionals for backing up and sharing your movies, photos, VMs, and files from a single device. The small but mighty TrueNAS® Minis stand apart with unmatched power to provide your data with the protection and performance it truly deserves.
Read more about TrueNAS Mini
Endless Possibilities
Ideal for file-sharing, backup, multimedia processing and distribution, video surveillance, edge/remote office, development, personal cloud, and other small/home office & SMB
Read more about TrueNAS Core featuresSharing is Caring
Easily create file shares, set permissions, and perform maintenance from a single web browser. The TrueNAS Mini supports all major file and block protocols and is designed to run quietly in any existing home or office environment. Plug it in and start it up, it just works.
Don’t Just Store Your Data. Protect it.
At the heart of TrueNAS is the self-healing, enterprise-grade OpenZFS file system. Combined with advanced tools like built-in RAID, snapshots, encryption, and bitrot detection, TrueNAS Minis provide ultimate protection against data loss, corruption, and ransomware.

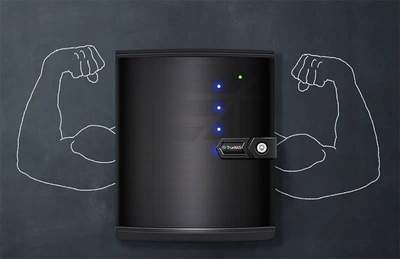

Mini but Mighty
Just because a NAS is small, doesn’t mean it has to be underpowered. TrueNAS Minis have the hardware horsepower to outperform any compact NAS on the market, and caching SSDs can be added to supercharge read and write performance even further. All while still remaining power-efficient and quiet.
Go Beyond Storage with Plugins & VMs
Broaden your Mini’s capabilities with a variety of free plugins, using TrueNAS CORE, or VMs and containers, using TrueNAS SCALE (Help Me Choose), to fill a variety of needs from shared media hosting to private cloud management.
US-Based International support and Local onsite support
Every TrueNAS Enterprise system is fully backed by our dedicated and top-rated professional support team. Enterprise support services with 7x24×365 coverage and onsite support options are backed by a global spares network to ensure international users receive the same great service. Our Hong Kong, China, Vietnam team are providing local and onsite support ...
TrueNAS Mini E+
4 Hot-Swap Bays
Quad-core C3558 Intel CPU
16 GB ECC RAM
Cost Effective
Quad 1GbE
TrueNAS Mini X
5 + 2 Hot-Swap Bays
Quad-core C3558 Intel CPU
16 GB ECC RAM
Efficient Design
Quad 1GbE

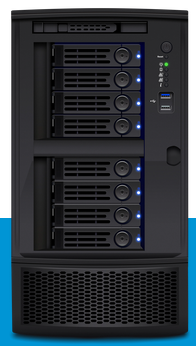

TrueNAS Mini XL
8 + 1 Hot-Swap Bays
Octa-core C3758 Intel CPU
32 GB ECC RAM
Performance Design
Dual 1/10GbEQuad 1GbE
TrueNAS Mini R
There are many compact NAS options on the market, but only one gives you access to the same tools used by enterprise storage professionals for backing up and sharing your movies, photos, VMs, and files from a single device. The small but mighty TrueNAS® Minis stand apart with unmatched power to provide your data with the protection and performance it truly deserves.
Read more about Mini series
12 Hot-Swap Bays
Octa-core C3758 Intel CPU
32 GB ECC RAM
PMax performance
Dual 1/10GbEQuad 1GbE
Full Specifications
| FEATURES | TrueNAS Mini E+ | TrueNAS Mini X | TrueNAS Mini X+ | TrueNAS Mini XL+ | TrueNAS Mini R |
|---|---|---|---|---|---|
| Chassis | 4 Bay Enclosure – Super Quiet Design | 5+2 Bay Enclosure – Super Quiet Design | 8+1 Bay Enclosure – Super Quiet Design | 12 Bay Enclosure – Super Quiet Design | |
| Drive Bays | 4 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 2 x SATA 2.5” Internal SSD Bays |
5 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 2 x SATA 2.5” Hot-Swappable SSD Bays |
8 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 1 x SATA 2.5” Hot-Swappable SSD Bay 1x SATA 2.5” Internal SSD Bay |
12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) | |
| Maximum Raw Capacity | Up to 87 TB | Up to 90 TB | Up to 105 TB | Up to 159 TB | Up to 216 TB |
| CPU | Quad-core C3558 Intel CPU | Octa-core C3758 Intel CPU | Octa-core C3758 Intel CPU | Octa-core C3758 Intel CPU | |
| Memory | 16 GB DDR4 with ECC (Upgradeable to 32GB) |
32 GB DDR4 with ECC (Upgradeable to 64GB) |
32 GB DDR4 with ECC (Upgradeable to 64GB) |
32 GB DDR4 with ECC (Upgradeable to 64GB) |
|
| RAID | OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe) | ||||
| Disk Management | Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T ISO Mounting Support, Hardware-Accelerated Disk Encryption |
||||
| Network | Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000) Dedicated RJ45 IPMI Port (Remote Hardware Management) |
Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional) |
Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional) |
Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional) |
|
| USB Ports | 2 x USB 2.0 Ports (Front) 1 x USB 3.0 Port (Rear) |
1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear) |
1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear) |
1 x USB 3.0 Port (Rear) 2 x USB 2.0 Ports (Rear) |
|
| Read/Write Cache | (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG) | ||||
| PCIe Expansion | N/A | 1 x PCI Express 3.0 x 4 | 1 x PCI Express 3.0 x 4 | 1 x PCI Express 3.0 x 4 | |
| Power Supply | 100V to 240V AC, 50/60 HZ, Single Phase | ||||
| Power Consumption (Maximum) | Diskless: 24W, With drives: 65W |
Diskless: 24W With drives: 84W |
Diskless: 40W With drives & 10G Add-on-card: 111W |
Diskless: 40W, With drives & 10G Add-on-card: 130W |
Diskless: 63W, With drives & 10G Add-on-card: 167W |
| Power Management | Remote Power-On/Off (IPMI), UPS Signal Response and Alerts | ||||
| User Control Interface | Web Browser and Remote Hardware Management (IPMI) | ||||
| Dimensions (W x D x H) |
8.25” x 11.2” x 9.5” / 210 x 284 x 241mm | 8.25″ x 10.5″ x 9.5″ / 210 x 267 x 241mm | 8.4” × 11” × 15.1” / 213 × 279 × 384mm | 17.2″ x 21″ x 3.5″ / 437 × 533 × 89mm | |
| Weight (no drives) |
10.8lbs / 4.9Kg | 13lbs / 5.9Kg | 23.15lbs / 10.5Kg | 18.7lbs / 8.5Kg | |
| Limited Warranty | 1-Year Warranty Included. Optional 3-Year Warranty purchasable. Software Warranty requires registration at portal.ixsystems.com. |
||||
| Accessories | Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable | Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet Short Rail Kit – 19″ to 26.6″ rackmount depth Optional Long Rail Kit available – 26.5″ to 36.4″ rackmount depth |
|||
