NetGate 1100

Netgate SG1000

Netgate 1100, a world-class best price-performance, elegant packaging, and an unbeatable low price with original pfSense. The Netgate 1100 is underpinned by the powerful, yet energy efficient, 64-bit Marvell ARMADA® 3720 network processing system-on-chip (SoC), which fully leverages dual Cortex®-A53 ARM® processor cores. For SOHO  are seeking an excellent Next Generation Firewall with up to 1 Gbps throughput, the Netgate 1100 is the new gold standard.



Modern & Flexible

  • Cost efficient / Low power consumption
  • Sleek, compact, and attractive case
  • Quiet operation / Fanless design
  • Mount anywhere: Wall and DIN rail mount options coming soon

Easy to use

  • Pre-loaded with pfSense software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense settings through our web-based GUI.

Low total cost of ownership

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

Grows with you

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.

Secure remote access

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

Common use cases

  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP)
  • On-Premises Appliance for SMB
  • SOHO, Small Networks, Small Branch Office, Remote Employees
  • Many VPN Connections, Outsourcing / Home Office Remote User VPN
  • IoT Security Endpoint
  • Commercial Applications
  • Network Tap
  • IPMI Port Firewall
  • VPN Endpoint


Software Features

pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information

Technical Specifications

SOC Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz
System Memory 1 GB DDR4 RAM on board
Storage 8 GB EMMC

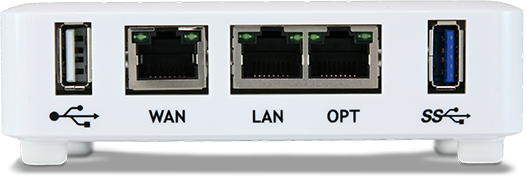

Network Interfaces 1x Marvell 88E6141 networking switch
3x GbE Ethernet (WAN/LAN/OPT)
1x Mini PCIe slot(1)
USB 1x USB 3.0
1x USB 2.0
1x Micro USB port (console)
Misc Reset button, heatsink, 3 Status LED
Power 12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported)
Power Consumption 3.48W (Idle)
Operating Temperature 0°C (32°F) to 45°C (113°F)
Enclosure Plastic 110 x 84.6 x 31.75 mm (4.33" x 3.33" x 1.25")
Hardware Warranty 1 year standard. Second year available only at time of purchase.
Certifications CE, FCC, RoHS



Global TAC Support

From Mass Storage NAS, Cyber security, IDS, IPS, Autosense/Autodefense to mission-critical HA...
HK: +852 2312-0878     China: +86 0755 2590-4562
HK email : sales_team @ topscoms . com     CN email : sales_team @ topscoms . cn

pfSense for Next Generation Firewall

OSIgate SDWAN Gateway

use TWO [SDWAN] and [SDWAN Optimizer] devices to connect two offices,  built a virtual lease line, with TCP/IP acceleration via SDWAN protocol...

* [SDWAN] a new technology to replace VPN

* [SDWAN Optimizer] a new technology to compress packets, QOS and do TCP/IP acceleration, increase bandwidth performance

Read More ...



The World’s Leading Open-Source Next Generation Firewall firmware, VPN, Wireguard and Router. Proven value with over 1 million installations worldwide. Deploy today on a Netgate appliance to gain autosense; autodefense, IDS, IPS as Next Generation Firewall, overall capability or Active connections are very depending on pfsense setting, log policy, addon modules and hardware spec with full susprises. or can further collaborate with the high speed Netgate TNSR Edge Router ...

Read More ...


Collect metrics / problem detection for Netgate Firewall, pfSense, OS & applications

Read More ...

NetGate 2100

  • Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
  • 4 GB DDR4 RAM, 8GB eMMC Flash on board
  • One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo)
    Four 1 Gigabit Ethernet LAN ports (Marvel 88E6141 switch, uplink at 2.5 Gbps)
    LAN ports can be repurposed for additional WAN ports
  • 1x Mini PCIe slot(1)
  • USB2.0x1, 1x Micro USB port (console)
  • 1 Million active connections
  • L3 Forwarding: 1.5G Mbps
  • Firewall: 881 Mbps
  • IPsec VPN: 118 Mbps
  • Desktop 1.7" (42.2 mm) tall x 4.25" (108 mm) deep x 6.8" (172.7 mm) wide
    with integrated keyholes for optional wall mounting

Read More ...

NetGate MBT-4220

  • Intel® Atom™ E3845 (Quad core x 1.91 GHz, 1MB cache, AES-NI)
  • 2GB DDR3L 1067MT/s, Memory down (non expandable)
  • 32GB M.2 SSD
  • 2x 1Gb Ethernet RJ45, based on Intel i211
  • USB2.0x1, USB3.0x1
  • HDMI, serial via FTDI header
  • 21.5 Million active connections
  • L3 Forwarding: 1G Mbps
  • Firewall: 800 Mbps
  • IPsec VPN: 100 Mbps

Read More ...

Netgate 4200

  • Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz
  • 4GB, 16G Storage
  • 4x 2.5GbE RJ45
  • 4.0 Million active connections
  • L3 Forwarding: 9.28 Gbps
  • Firewall: 8.61 Gbps
  • IPsec VPN: 3.2Gbps

Read More ...

24 hrs Support Center :
you can issue a ticket to get support... or call our office or Emergency Business WhatsApp : +852.2312 0878

connect support center ...

Netgate 8200

  • Intel® Atom® C3758R with QAT, 8-core @ 2.4 GHz
  • 16GB DDR4, 128G Storage
  • 4x GbE RJ45, 2 x SPF, 2 X Combo
  • 10.0 Million active connections
  • L3 Forwarding: 18.6 Gbps
  • Firewall: 18.5 Gbps
  • IPsec VPN: 3.24 Gbps

Read More ...

Netgate 6100

  • Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
  • 8GB DDR4, 16G Storage
  • 4x GbE RJ45, 10G x SPF, 2 X 1G Combo
  • 10.0 Million active connections
  • L3 Forwarding: 18.6 Gbps
  • Firewall: 18.5 Gbps
  • IPsec VPN: 3.24 Gbps

Read More ...
