NetGate 8200

Netgate SG1000

The Netgate® 8200 is one of the most versatile security gateways in its class. It is ideal for SME, Enterprise, IDC who require flexible port configurations for high-speed WAN and LAN connectivity. The Netgate 8200 combines the power of an Intel® Atom® C3758R with QAT, 8-core @ 2.4 GHz  CPU with integrated QuickAssist & AES-NI, 128G storage and 16 GB of memory for a snappy user experience, delivering over 18.6 Gbps of L3 routing, 18.55 Gbps Firewall throughput  across 8 Independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports.

Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.

The Netgate 8200 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the Netgate 8200 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.



Easy to use

  • Pre-loaded with pfSense Plus software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense settings through our web-based GUI.

Low total cost of ownership

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

Grows with you

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.

Secure remote access

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

Common use cases

  • SMB to Medium Sized Networks
  • Small to Medium Sized Branch Office
  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
  • Home or Commercial High-Speed Gigabit Connections
  • Multiple VPN Connections

Software Features

pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information

HARDWARE SPECIFICATIONS:

CPU

Intel® Atom® C3758R with QAT, 8-core @ 2.4 GHz

CPU Cores

8 Core

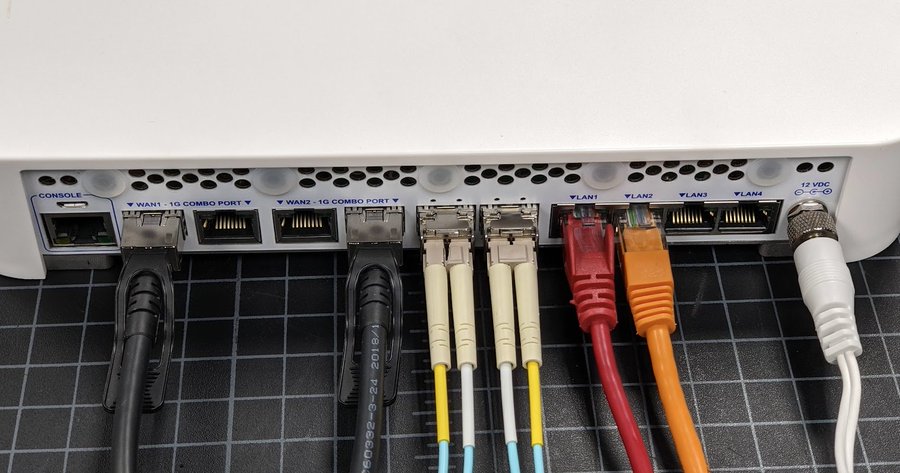

Physical Network I/O ports

(2) 10 Gbps SFP+ cage (WAN)

(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

Storage

128GB NVMe M.2 SSD

Memory

16 GB DDR4

Physical Expansion Card Slots

2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

1x Mini-PCie Slot (Wi-Fi Only)

Console Port

1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

USB Ports

2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)

LED

3 x RGB LED(s) software / bootloader controllable via Microchip MCU

Enclosure

Desktop - Aluminum, plastic, and steel enclosure.

10 x 7.88 x 1.88 inches

254 x 200 x 47.63 mm

Mounting

1U mount kit

Cooling

Passive

Power

External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

Specifications (not final):

- AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

- US Power Cord: NEMA 1-15-P to IEC320-C7

- UK Power Cord: BS 1363 to IEC320-C7

- EU Power Cord: CEE7/16 to IEC320-C7

- ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

Environmental

0°C (32°F) to 40°C (104°F) - ambient

Certifications FCC (Class B), IEC / CE, CB, UL, RoHS, RCM
