Netgate 2100, Big value, attractive appearance

Pound-for-pound, the Netgate 2100 security gateway appliance with pfSense software delivers unbeatable performance and flexibility in its class. It is ideal for home, remote worker, and small business deployments that require more compute resources to support the use of multiple pfSense add-on packages and VPN performance to support multiple user- and site-to-site connections.

Featuring a Dual core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4 GB of DDR4 RAM, and upgradeable storage.

PRICE-PERFORMANCE KILLER

  • Cost efficient / Low power consumption
  • Sleek, compact, and attractive case
  • Quiet operation / Fanless design
  • Mount anywhere: Wall and DIN rail mount options coming soon
  • Delivers 1.56 Gbps routing for common iPerf3 traffic and over 850 Mbps of firewall throughput.
  • Equipped for memory-intensive packages, e.g., IDS/IPS

ENHANCED SECURITY

  • Pre-loaded with pfSense software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense settings through our web-based GUI.
  • Secured by pfSense software
  • Equipped with Microchip® Crypto Authentication Device which provides assurance your system is running authentic, unaltered pfSense software

Low total cost of ownership

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

Grows with you

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.
    Small Office Home Office (SOHO), home labs, remote workers, and branch offices.
  • Managed Service Providers (MSP) and Managed Security Service Providers (MSSP) services extension

Secure remote access

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

Common use cases

  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP)
  • On-Premises Appliance for SMB
  • SOHO, Small Networks, Small Branch Office, Remote Employees
  • Many VPN Connections, Outsourcing / Home Office Remote User VPN
  • IoT Security Endpoint
  • Commercial Applications
  • Network Tap
  • IPMI Port Firewall
  • VPN Endpoint

PRODUCT FEATURES

LOW TOTAL COST OF OWNERSHIP

  • No artificial limits or add-ons required to make your system fully functional
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power requirements to help save you money
  • No moving parts to wear out. This system is designed for a long deployment lifetime

GROWS WITH YOU

  • From firewall to multi-function security gateway, get the security you need to protect your home or business
  • Flexible configuration and support for multi-WAN, VPN, load balancing, reporting and monitoring, etc.
  • Maximum Active Connections: 1 million

EASY GUI MANAGEMENT

  • Manage pfSense settings through our web-based GUI
  • No fumbling with a command line interface or typing arcane commands

SECURE REMOTE ACCESS

  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect securely, or connect to the Cloud
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud

OPEN SOURCE SOFTWARE

pfSense software is a free, open source firewall and router platform that is functionally competitive with expensive, proprietary commercial firewalls. The pfSense platform can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN appliance, DHCP server, DNS server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, PPTP
  • Dynamic DNS client
  • DHCP Server and Relay functions
  • PPPoE Server
  • Reporting and monitoring features with real time information
  • IoT gateway / security endpoint
  • Network tap
  • IPMI / BMC firewall
  • Learn more about the features of pfSense software


Software Features

pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information

TECHNICAL SPECIFICATIONS

SOC Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
CPU Cores Dual Core

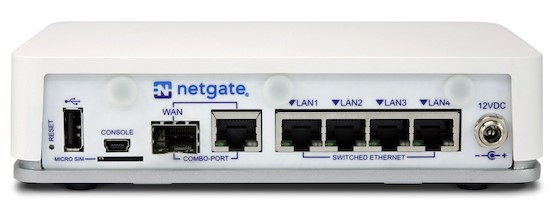

Network Interfaces One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo)
Four 1 Gigabit Ethernet LAN ports (Marvel 88E6141 switch with 2.5 Gb uplink)
LAN ports can be repurposed for additional WAN ports
Storage 8GB eMMC Flash on board, factory-upgradable to 32 GB M.2 SATA 2242 Solid State Drive (not NVMe compatible)
System Memory 4 GB DDR4 (not expandable)
Expansion 1x M.2 'B' key sockets (SSD, LTE)
1x miniPCIe (WiFi)
microSIM slot
Console Port MiniUSB (console cable included)
USB Ports 1x 2.0 port
LED 3 full color RGB LEDs

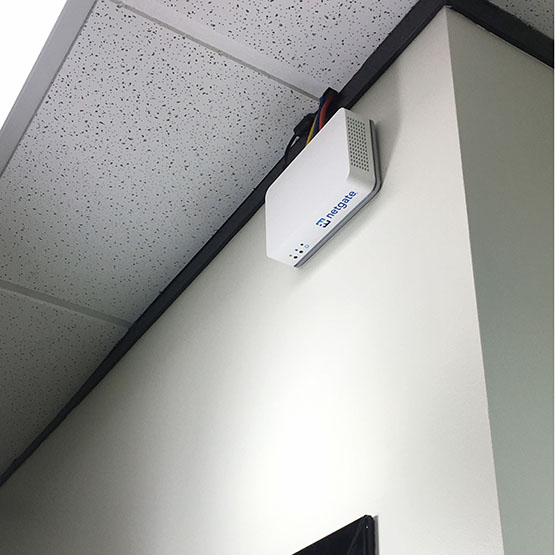

Enclosure Desktop 1.7" (42.2 mm) tall x 4.25" (108 mm) deep x 6.8" (172.7 mm) wide with integrated keyholes for wall mount
Cooling Passive
Power External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector
AC Inlet: IEC320-C7 (2 PIN)
One US, UK, EU or ANZ power cord included
US Power Cord: NEMA 1-15P to IEC320-C7
UK Power Cord: BS 1363 to IEC320-C7
EU Power Cord: CEE7/16 to IEC320-C7
ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental 32°F (0°C) to 122°F (50°C)
Certifications CE, FCC (Class B), RoHS, UL, RCM, VCCI
Support Options Netgate Global Support and TOPS local TAC support
