NetGate SG-1000

Netgate SG1000

The Netgate® SG-1000 micro-Firewall is a cost-effective, state-of-the-art, pfSense® Security Gateway appliance.

The Netgate® SG-1000 comes with dual 1Gbps Ethernet ports, enabling maximum throughput exceeding 100Mbps[1]. The ARM Cortex®-A8 in the TI AM3552 SoC and DDR3L RAM facilitate low-power consumption while maintaining performance. The Netgate SG-1000 comes in a lightweight anodized aluminum case. It’s credit-card sized footprint allows it to be easily tucked away, but you’ll be proud to show it off.

The Netgate SG-1000 microFirewall is inexpensive and purpose-built to run pfSense software. It can be deployed in many environments: Multi-dwelling units (MDU) such as apartments and dorm rooms, commercial-control applications (SCADA), and the more traditional small office / home office environments. It is also an ideal security gateway for the Internet of Things (IoT) applications such as remote monitoring applications for smart home/smart cities, commercial automation, energy management, agricultural, and health care.

<td">



Easy to use

  • Pre-loaded with pfSense software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense settings through our web-based GUI.

Low total cost of ownership

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

Grows with you

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.

Secure remote access

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

Common use cases

  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP)
  • On-Premises Appliance for SMB
  • SOHO, Small Networks, Small Branch Office, Remote Employees
  • Many VPN Connections, Outsourcing / Home Office Remote User VPN
  • IoT Security Endpoint
  • Commercial Applications
  • Network Tap
  • IPMI Port Firewall
  • VPN Endpoint

Software Features

pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information

Technical Specifications

CPU TI AM3352 ARM Cortex-A8 600 MHz, including crypto accelerator
CPU Cores 1
Memory Options 512MB DDR3 Non ECC
Storage Options 4GB eMMC Flash on board
Network Interfaces 2x 1GbE on RJ45 (switched)
USB Ports 1x 2.0 OTG
Console Port Micro USB
Max Active Connections 200,000
Power 5 VDC power input connector
Case Desktop case, vented anodized aluminum available in red or black
Dimensions 1" x 2" x 3"
Cooling Passive
Operating Temperature 0°C (32°F) to 50°C (122°F)
Hardware Warranty 12 Months
Certifications CE, FCC, RoHS
Power Consumption 2.5W (idle)
Support Options Professional, Enterprise, and Enterprise Plus

Netgate Global Support 24x7

From initial firewall setup to mission-critical HA implementation, We have expertise to assist ...
please call HK office: +852 2312-0878 or email : sales_team @ tops.hk for enquiry.

pfSense for Next Generation Firewall



World’s Leading Open-Source Platform for Next Generation FireWall, VPN and Routing Needs. Proven value with over 1 million installations worldwide. Firewall, VPN, and router functionality for a fraction of the cost of proprietary alternatives. Deploy today on a Netgate appliance, white box appliance, virtual machine or cloud provider instance.

Read More ...

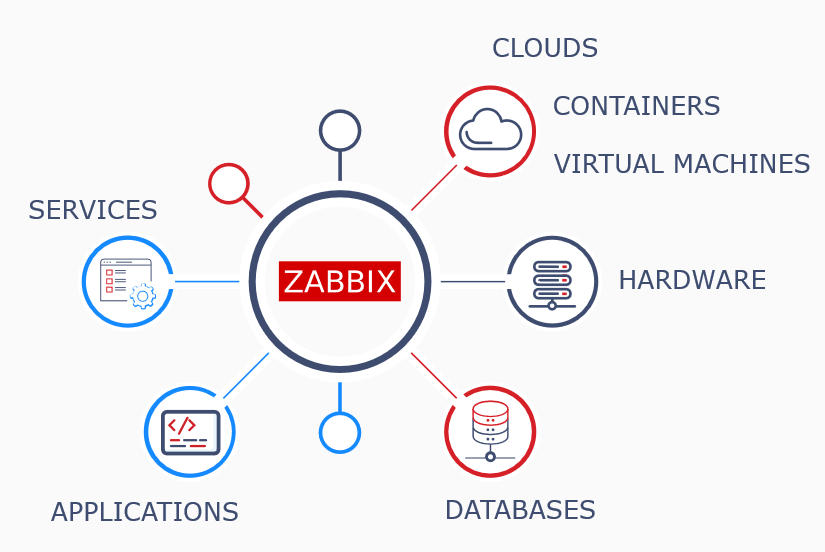

Collect metrics / problem detection for Netgate Firewall, pfSense, OS & applications

Read More ...

NetGate SG-3100

  • ARM v7 Cortex-A9 @ 1.6 GHz Dual Core with NEON SIMD and FPU
  • 2GB DDR4L Non ECC, 8GB eMMC Flash on board
  • 2x 1GbE, configured as dual WAN or one WAN one LAN
    four-port 1 gbps Marvell 88E6141 switch, uplinked at 2.5 gbps to the third port on the SoC for LAN.
  • USB3.0x1
  • 1.8 Million active connections

Read More ...

NetGate SG-5100

  • Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist & AES-NI, Quad Core,
  • 4GB DDR4
  • 4x GbE RJ45 Intel SoC Integrated MAC, 2x GbE RJ45 Intel i210
  • 4.0 Million active connections

Read More ...

NetGate XG-7100

  • Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist, Quad Core
  • 8GB DDR4 Non ECC 16GB DDR4 SODIMM Additional Memory (24GB Total)
  • 2x 10GbE Intel x553 SFP+ Ports, 8-port 1Gbps Marvell 88E6190 switch uplinked at 5 Gbps to Intel SoC (2x 2.5 Gbps) for LAN.
  • 1X 3.0 USB, 2X 2.0USB
  • 8 Million active connections

Read More ...
