Compact Unified Enterprise Storage
The TrueNAS® X-Series is a line of compact entry-level enterprise storage appliances that deliver reliability, unbeatable value, and efficient performance over ethernet or fiber channel. Available in hybrid or all-flash configurations, the X-Series provides high availability options for up to 1 PB in capacity.
The TrueNAS X-Series is a compact 2U system with 12 drives and expansion to 72 drives and over 1PB of capacity. Each system can be configured for scalable Hybrid capacity or affordable All-Flash performance. The X-Series is designed for industry-leading Total Cost of Ownership (TCO) with Software Status Page.
World’s Most Popular Storage OS
Free and Open Source
Unified Storage Built on OpenZFS
Installs on Hardware or VMs
Community-Supported
Combined Single & Multi-Node Edition
Scale-Out SAN/NAS/Object Software & Appliances
Linux Containers and VMs
128-Bit Open ZFS File System
Free To Download & Use
Community or Enterprise Support
Single & Dual Node Edition
Scale-Up SAN/NAS/Object Storage Appliances
High Availability
128-Bit Open ZFS File System
Enterprise Reliability & Features
24×7 Professional Support
Efficient by Design
The sleek 2U design of the X-Series is designed to minimize rack space and power footprint to provide efficient performance and capacity for small to medium workloads. Despite its small size, a single TrueNAS X20 can support up to 1 PB of raw capacity in just 6U.
Read more about X series
Storage You Can Rely On
The TrueNAS M-Series offers unmatched data reliability in both software and hardware. The OpenZFS file system is the last word in data protection with copy-on-write and bit-rot detection ensuring the integrity of your data from write to read. Dual controllers and high- availability options ensure over 99.999% uptime to maintain business operations and keep applications running around the clock.
Read more about ZFSHardware Management & Upgrades, Simplified
Servicing an M-Series system is made easy by the modular, tool-less hardware design. Additional integrated enclosure management capabilities save time and effort by providing graphical visualization of the system in the UI, making it easy to monitor the state of your system from a single screen. If performance or capacity needs change over time, it’s as simple as a non-disruptive upgrade to higher-end M-Series controllers.
Scale Up or “SCALE” Out
Begin building the foundation of your scale-out, hyper-converged virtualization infrastructure with SCALE or use Enterprise for high-performance, ultra-reliable local HA storage. Expand to over 20 PB on a single M60 head unit with support for up to 12 expansion shelves, or use TrueNAS SCALE to cluster over 100 systems together for massive capacity and performance.
Read more about TrueNAS Scale features
US-Based International support and Local onsite support
Every TrueNAS Enterprise system is fully backed by our dedicated and top-rated professional support team. Enterprise support services with 7x24×365 coverage and onsite support options are backed by a global spares network to ensure international users receive the same great service. Our Hong Kong, China, Vietnam team are providing local and onsite support ...
Architecture
The TrueNAS X-Series is a compact 2U system with 12 drives and expansion to 72 drives and over 1PB of capacity. Each system can be configured for scalable Hybrid capacity or affordable All-Flash performance. The X-Series is designed for industry-leading Total Cost of Ownership (TCO) with

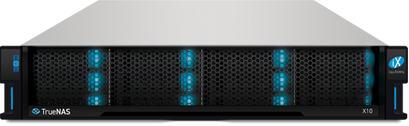

 TrueNAS X10 |

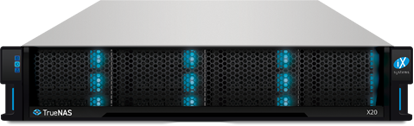

 TrueNAS X20 |
|
|---|---|---|
| Height | 2U-6U | 2U-10U |
| Chassis Depth | 21”, 531mm | 21”, 531mm |
| Dual Controllers (HA) | Optional | Optional |
| DRAM Per Controller | 32 GB | 64 GB |
| Networking | 2x 10/25 GbE | 4x 10 or 2x 40 GbE |
| 2x 10GBase-T | 2x 10GBase-T | |
| Fibre Channel (option) | N/A | 2x 8 Gb |
| Expansion Shelves | 1 | 2 |
| Max Drives Supported | 36 | 72 |
| Max Throughput | 2 GB/s | 4 GB/s |
| Hybrid Storage (HDD + Flash) | ||
| Max Capacity | 500 TB | 1 PB |
| Max Effective Capacity* | 1 PB | 2 PB |
| Write Cache | SAS SSD | SAS SSD |
| Max Read Cache | 800 GB SAS SSD | 1.6 TB SAS SSD |
| All-Flash Storage | ||
| Max Capacity | 180 TB | 270 TB |
| Max Effective Capacity* | 600 TB | 1 PB |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated | |
| Performance | Varies based on configuration. Contact us sales_team @ tops.hk. Phone : +852.23120878 | |
| Pricing Guidance | Starting at US$5,000 with single controller and 1yr Bronze Support | Starting at US$12,000 with single controller and 1yr Bronze Support |
| Guidance of approximately US$80/TB for Hard Drive capacity and approximately US$500/TB for Flash capacity. Prices vary based on configuration. | ||
| Datasheets | TrueNAS X-Series Datasheet, TrueNAS Expansion Shelf Datasheet | |
* Maximum effective capacity assumes typical data reduction through compression and deduplication.
