Fail over

  • NetGate XG-1537 HA

    Netgate SG1000

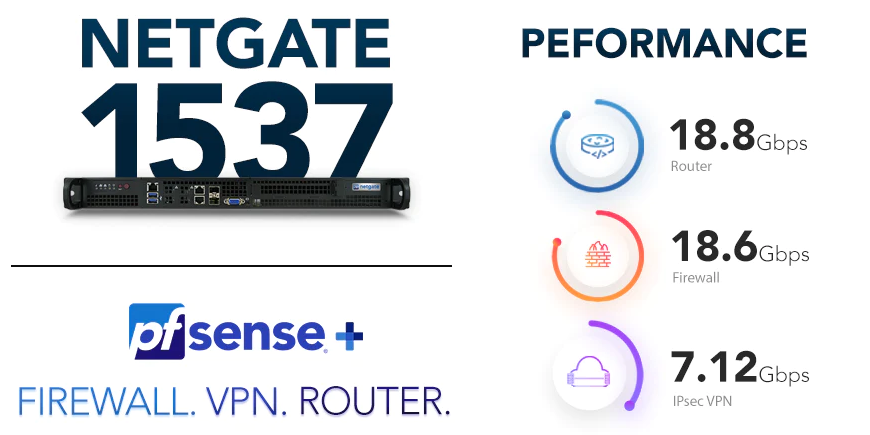

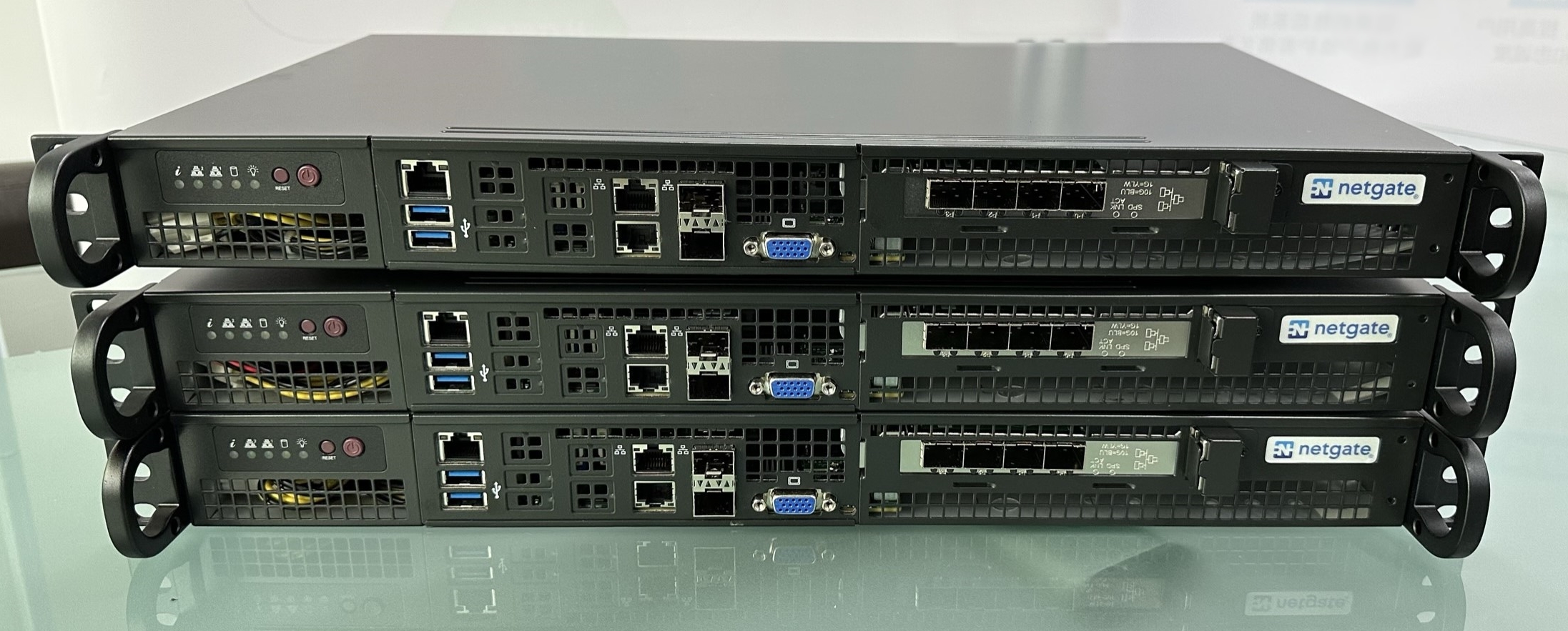

    The Netgate XG-1537 1U HA  Security Gateway Appliance High Availability Dual-unit system is designed for fault tolerance and failover to prevent loss of critical services in case of hardware or software failure. It is an excellent solution for medium to large business to provide flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc. With preloaded pfSense software and 10Gbps SFP+ ports, the XG-1537 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line next generation security appliance.



    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    Technical Specifications

    CPU Intel "Xeon-DE" D-1537, 1.7 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 8GB~32GB DDR4 ECC RDIMM
    Storage Options 500GB M.2 SSD
    2x 250GB 2.5" SSD in RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GbE SFP+
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 8 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 0°C to 60°C (32°F to 140°F)
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • NetGate XG-1537 HA

    Netgate SG1000

    Netgate XG-1537 1U HA  高可用性 双单元系统,设计用于高容错和故障转移,以防止在硬件或软件出现故障时丢失关键服务。可以将其配置为下一代防火墙,LAN 或 WAN 路由器,VPN 设备,DHCP 服务器,DNS 服务器和 IDS / IPS,并具有可选的程序包,以优惠的价格提供高性能,高吞吐量的一线容错安全设备。

    预装的pfSense 软件,Netgate XG-1537 HA 是一种快速的网络安全解决方案,不受传统的年度合同的限制,不受许可费或人为限制的限制。 考虑到性能,多功能性和较低的总体拥有成本,这是一款低功耗系统,提供高水平的 I/O 吞吐量和最佳容错性能的下一代防火墙。



    易于使用

    • 预装 pfSense 系统,开箱即用。
    • 性能强大但外形尺寸较小,适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。

    总拥有成本低

            (TCO=Total cost of ownership)

    • 无人为的限制或附加组件,全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制,对用户,防火墙规则,或IPsec隧道。
    • 低功耗,节省成本,更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN,负载平衡,设备报告和监控。
    • 简单的包管理系统,添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接,使移动工作者安全连接,或连接到企业云端!
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中大型公司,企业,IDC 网络
    • 中大企业型 分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版,在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense 固件的设备可以配置为有状态包过滤下一代防火墙、IDS/IPS、LAN 或 WAN 路由器、VPN 设备、DHCP 服务器、DNS 服务器,也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的下一代防火墙或路由器设备
    • 路由规则和策略,用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • IDS, IPS : autosense, autodetect, autoblock threat
    • 专属门户与 MAC 过滤,半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格

    CPU Intel "Xeon-DE" D-1537, 1.7 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 8GB~32G DDR4 ECC RDIMM
    Storage Options 5000GB M.2 SSD
    2x 250GB 2.5" SSD RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GbE SFP+
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 8 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 0°C to 60°C (32°F to 140°F)
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • NetGate XG-1541 HA

    Netgate SG1000

    The Netgate XG-1541 1U HA  Next Generation Security Gateway Appliance High Availability dual-unit system is designed for fault tolerance and failover to prevent loss of critical services in case of hardware or software failure. It was created as an excellent solution for medium to large business to provide flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc. With preloaded pfSense+ software, the XG-1541 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS autosense, autodetect, autoblock network threat with optional packages to deliver a high performance, high throughput front-line security appliance.



    Easy to use

    • Pre-loaded with pfSense+ software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense+ settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • Medium to Big Sized Networks, Data Center
    • Medium to Big Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense+ software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense+ software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense+ security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information



    Technical Specifications

    CPU Intel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 16GB~32GB DDR4 ECC RDIMM
    Storage Options 500GB
    2x 256GB RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GBase-T
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 16 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 10°C to 35°C
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • NetGate XG-1541 HA

    Netgate SG1000

    Netgate XG-1541 1U HA 下一代安全网关设备,高可用性双单元系统旨在实现容错和故障转移,以防止在硬件或软件出现故障时丢失关键服务。

    它被创建为大中型企业的出色解决方案,可为多WAN,高可用性,VPN,负载平衡,报告和监视等提供灵活的配置和支持。

    Netgate XG-1541 HA 带有预装的pfSense软件,是一种快速的解决方案。 网络安全解决方案,不受传统年度合同,许可费用或人为限制的限制。 可以将其配置为防火墙,LAN或WAN路由器,VPN 设备,DHCP 服务器,DNS 服务器和IDS / IPS 自动检测,自动检测,自动阻止网络威胁以及可选软件包,以提供高性能,高吞吐量的下一代第一线安全性 器具。



    易于使用

    • 预装 pfSense+ 系统,开箱即用。
    • 性能强大但外形尺寸较小,适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense+ 全部设置。

    总拥有成本低

            (TCO=Total cost of ownership)

    • 无人为的限制或附加组件,全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制,对用户,防火墙规则,或IPsec隧道。
    • 低功耗,节省成本,更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN,负载平衡,设备报告和监控。
    • 简单的包管理系统,添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接,使移动工作者安全连接,或连接到企业云端!
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中大型公司,企业,IDC 网络
    • 中大企业型 分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense+ 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版,在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense+ 固件的设备可以配置为有状态包过滤下一代防火墙、IDS/IPS、LAN 或 WAN 路由器、VPN 设备、DHCP 服务器、DNS 服务器,也可以配置为其他应用程序和专用设备。 下一代 pfSense+ 安全防火墙特点包括:

    • 包含状态包过滤的下一代防火墙或路由器设备
    • 路由规则和策略,用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • IDS, IPS : autosense, autodetect, autoblock threat
    • 专属门户与 MAC 过滤,半径支持等
    • VPN: IPsec, OpenVPN, L2TP, Wireguard
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格

    CPU Intel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC
    CPU Cores 8
    Memory Options 16GB~32GB DDR4 ECCRDIMM
    Storage Options 500GB
    2x 256GB RAID 1
    Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GBase-T
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Network Expansion Options 4-Port Intel GbE
    2-port Chelsio SFP+ Expansion
    USB Ports 2x 3.0 ports
    Console Port VGA
    Max Active Connections 16 Million
    Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
    Case Standard 19" 1U rack mount
    Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
    Cooling Active
    Operating Temperature 10°C to 35°C
    Hardware Warranty 12 months
    Certifications CE Emission, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • NetGate XG-7100 HA

    Netgate SG1000

    The Netgate XG-7100 1U HA Security Gateway Appliance High Availability model, 2-unit system is designed for fault tolerance and failover to prevent loss of critical services in case of hardware or software failure. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the XG-7100 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built to provide a high level of I/O throughput and optimal performance.

    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    Technical Specifications

    CPU Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist
    CPU Cores 4
    Memory Options 8GB DDR4 Non ECC
    16GB DDR4 SODIMM Additional Memory (24GB Total)
    Storage Options 32GB eMMC Flash
    256GB M.2 SATA SSD
    Network Interfaces 2x 10GbE Intel x553 SFP+ Ports
    8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps to Intel SoC (2x 2.5 Gbps) for LAN.
    Network Expansion Options yes, on demand
    USB Ports 1X 3.0
    2X 2.0
    Console Port Mini USB
    Max Active Connections 8.0 Million
    Power Internal AC/DC 100-240V, 50-60 Hz
    Case 19" 1U rack mount
    Dimensions 19" (483mm) x 1.75" (44mm) x 8.5" (216mm)
    Cooling Active
    Operating Temperature 0°C (32°F) to 60°C (140°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus



  • NetGate XG-7100 HA

    Netgate SG1000

    Netgate XG-7100 1U HA  高可用性 双单元系统,设计用于高容错和故障转移,以防止在硬件或软件出现故障时丢失关键服务。

    可以将其配置为下一代防火墙,LAN 或 WAN 路由器,VPN 设备,DHCP 服务器,DNS 服务器和 IDS / IPS,并具有可选的程序包,以优惠的价格提供高性能,高吞吐量的一线容错安全设备。

    预装的pfSense 软件,XG-7100 1U是一种快速的网络安全解决方案,不受传统的年度合同的限制,不受许可费或人为限制的限制。 考虑到性能/多功能性和较低的总体拥有成本,这是一款低功耗系统,提供高水平的 I/O 吞吐量和最佳容错性能的下一代防火墙。

    易于使用

    • 预装 pfSense 系统,开箱即用。
    • 性能强大但外形尺寸较小,适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。

    总拥有成本低

            (TCO=Total cost of ownership)

    • 无人为的限制或附加组件,全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制,对用户,防火墙规则,或IPsec隧道。
    • 低功耗,节省成本,更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN,负载平衡,设备报告和监控。
    • 简单的包管理系统,添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接,使移动工作者安全连接,或连接到企业云端!
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版,在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense 固件的设备可以配置为有状态包过滤下一代防火墙、IDS/IPS、LAN 或 WAN 路由器、VPN 设备、DHCP 服务器、DNS 服务器,也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的下一代防火墙或路由器设备
    • 路由规则和策略,用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • IDS, IPS : autosense, autodetect, autoblock threat
    • 专属门户与 MAC 过滤,半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格

    CPU Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist
    CPU Cores 4
    Memory Options 8GB DDR4 Non ECC
    16GB DDR4 SODIMM Additional Memory (24GB Total)
    Storage Options 32GB eMMC Flash
    256GB M.2 SATA SSD
    Network Interfaces 2x 10GbE Intel x553 SFP+ Ports
    8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps to Intel SoC (2x 2.5 Gbps) for LAN.
    Network Expansion Options Yes, on demand
    USB Ports 1X 3.0
    2X 2.0
    Console Port Mini USB
    Max Active Connections 8.0 Million
    Power Internal AC/DC 100-240V, 50-60 Hz
    Case 19" 1U rack mount
    Dimensions 19" (483mm) x 1.75" (44mm) x 8.5" (216mm)
    Cooling Active
    Operating Temperature 0°C (32°F) to 60°C (140°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 20W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus
