(EOS: end of sales)

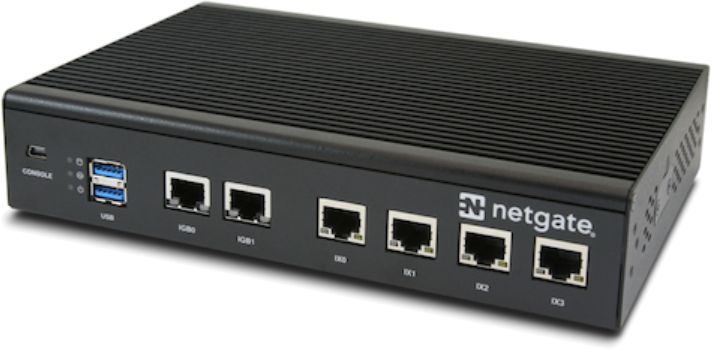

The Netgate SG-5100 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the SG-5100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.
![]() |
Easy to use
- Pre-loaded with pfSense software, ready to use right out of the box.
- Small form-factor, so it fits about anywhere.
- Easy GUI management. Manage pfSense settings through our web-based GUI.
Low total cost of ownership
- No artificial limits or add-ons required to make your system fully functional.
- No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
- Low power requirements to save money and be more eco-friendly.
Grows with you
- Flexible configuration and support for VPN, load balancing, reporting and monitoring.
- Simple package management system to add powerful functions and features.
Secure remote access
- Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
- Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.
Common use cases
- SMB to Medium Sized Networks
- Small to Medium Sized Branch Office
- Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
- Home or Commercial High-Speed Gigabit Connections
- Multiple VPN Connections
Software Features
pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:
- Stateful packet filtering firewall or pure router
- Routing policy per gateway and per-rule for failover and load balancing
- Transparent layer 2 firewall
- Support for IPV6, NAT, BGP
- Captive portal with MAC filtering, RADIUS support, etc
- VPN: IPsec, OpenVPN, L2TP
- Dynamic DNS client
- Reporting and monitoring features with real time information
Technical Specifications
CPU | Intel "Denverton" Atom C3558 2.2 GHz with QuickAssist & AES-NI |
---|---|
CPU Cores | 4 |
Memory Options | 4GB DDR4 2400 MHz ECC DIMM Upgradable |
Storage Options | 8GB eMMC Flash on board Upgradable |
Network Interfaces | 4x GbE RJ45 Intel SoC Integrated MAC 2x GbE RJ45 Intel i210 |
Network Expansion Options | None |
USB Ports | 2X 3.0 |
Console Port | Mini USB |
Max Active Connections | 4.0 Million |
Power | Input: DC jack with threaded barrel connector External ITE P/S AC/DC 100-240V, 50-60Hz, 60W AC Inlet: IEC320-C13 (3 PIN) US Power Cord included |
Case | Desktop case |
Dimensions | 1.75" x 8.5" x 5.5" |
Cooling | Passive |
Operating Temperature | 0°C (32°F) to 50°C (122°F) |
Hardware Warranty | 12 Months |
Certifications | RoHS, CE/FCC Class B, UL |
Power Consumption | 7W (idle) |
Support Options | Professional, Enterprise, and Enterprise Plus |
