  • Mikrotik CRS328-4C-20S-4S+RM

    Mikrotik RB2011

    The Mikrotik CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

    The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.



    Product Manual

    HARDWARE SPECIFICATIONS:

    Details
    Product code CRS328-4C-20S-4S+RM
    Architecture ARM 32bit
    CPU 98DX3236
    CPU core count 1
    CPU nominal frequency 800 MHz
    Dimensions 443 x 194 x 44 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C

    Switching results

    CRS328-4C-20S-4S+RM
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 5,201.6 63,167.8 15,037.6 61,594.0 95,238.1 48,761.9
    Switching Non blocking Layer 2 capacity 5,201.6 126,335.5 15,037.6 123,188.0 95,238.1 97,523.8
    Switching Non blocking Layer 1 throughput 5,201.6 64,000.0 15,037.6 64,000.0 95,238.1 64,000.0
    Switching Non blocking Layer 1 capacity 5,201.6 128,000.0 15,037.6 128,000.0 95,238.1 128,000.0

    Ethernet test results

    CRS328-4C-20S-4S+RM 98DX3236 all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 104,3 1266.6 273,5 1120.3 449 229.9
    Bridging 25 bridge filter rules 104 1263.0 104,6 428.4 104,5 53.5
    Routing none (fast path) 104,3 1266.6 273,9 1121.9 343,5 175.9
    Routing 25 simple queues 104,3 1266.6 136,9 560.7 137,4 70.3
    Routing 25 ip filter rules 64,8 786.9 65,9 269.9 65,8 33.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

  • Mikrotik CRS328-4C-20S-4S+RM

    Mikrotik CRS328-4C-20S-4S+RM Mikrotik CRS328-4C-20S-4S+RM 是一款带有组合组的 28 个独立端口交换机。 该设备有 20 个 SFP 端口、4 个用于 10G 模块的 SFP+ 端口和 4 个组合端口，您可以选择使用组合组中的 SFP 或 RJ45 端口。 这些端口也可以由软件选择，因此如果您已插入所有八根电缆，则可以使用脚本来决定哪四个组合端口将处于活动状态。.

    该设备采用 1U 机架式机箱，配备两个 100-240 V 电源，具有故障转移功能。 RJ45 控制台端口可用于管理和调试，并且可以自定义模式按钮以执行任何 RouterOS 命令。

    该设备具有“双启动”功能，允许您在两个操作系统之间进行选择 - RouterOS 或 SwOS。



    产品手册

    硬件规格：

    Details
    Product code CRS328-4C-20S-4S+RM
    Architecture ARM 32bit
    CPU 98DX3236
    CPU core count 1
    CPU nominal frequency 800 MHz
    Dimensions 443 x 194 x 44 mm
    RouterOS license 5
    Operating System RouterOS / SwitchOS
    Size of RAM 512 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C

    交换机结果

    CRS328-4C-20S-4S+RM
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 5,201.6 63,167.8 15,037.6 61,594.0 95,238.1 48,761.9
    Switching Non blocking Layer 2 capacity 5,201.6 126,335.5 15,037.6 123,188.0 95,238.1 97,523.8
    Switching Non blocking Layer 1 throughput 5,201.6 64,000.0 15,037.6 64,000.0 95,238.1 64,000.0
    Switching Non blocking Layer 1 capacity 5,201.6 128,000.0 15,037.6 128,000.0 95,238.1 128,000.0

    以太网测试结果

    CRS328-4C-20S-4S+RM 98DX3236 all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 104,3 1266.6 273,5 1120.3 449 229.9
    Bridging 25 bridge filter rules 104 1263.0 104,6 428.4 104,5 53.5
    Routing none (fast path) 104,3 1266.6 273,9 1121.9 343,5 175.9
    Routing 25 simple queues 104,3 1266.6 136,9 560.7 137,4 70.3
    Routing 25 ip filter rules 64,8 786.9 65,9 269.9 65,8 33.7
    1. 所有测试均使用 Xena Networks 专用测试设备 (XenaBay) 完成，并根据 RFC2544 (Xena2544) 完成
    2. 最大吞吐量是在 64、512、1518 字节数据包大小的 0.1% 丢包容限下尝试 30 秒以上确定的
    3. 测试结果显示了设备的最大性能，并且使用上述硬件和软件配置即可达到，不同的配置很可能会导致较低的结果

  • Mikrotik RB2011iL-IN

    Mikrotik RB2011

    The Mikrotik RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The Mikrotik RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    The Mikrotik RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports.

    Product Manual

    HARDWARE SPECIFICATIONS:

    Specifications

    Details
    Product code RB2011iL-IN
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 230x90x25mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -35C to +65C



    Ethernet test results

    RB2011iL-IN AR9344 1G&100M all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
    Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
    Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
    Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
    Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

  • Mikrotik RB2011iL-RM

    Mikrotik RB2011

    The Mikrotik RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The Mikrotik RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    The Mikrotik RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports.

    RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.

    Product Manual

    HARDWARE SPECIFICATIONS:

    Details
    Product code RB2011iL-RM
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 443 x 92 x 44 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 60°C

    Ethernet test results

    RB2011iL-RM AR9344 1G&100M all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
    Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
    Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
    Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
    Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

  • Mikrotik RB2011iL-RM

    Mikrotik RB2011是低成本多端口设备系列。专为室内使用而设计，可在许多不同的情况下使用，具有多种选择。

    Mikrotik RB2011 由 RouterOS 提供支持，RouterOS 是一个功能齐全的路由操作系统，经过十五年的不断改进。动态路由、热点、防火墙、MPLS、VPN、高级服务质量、负载平衡和绑定、实时配置和监控——这只是 RouterOS 支持的众多功能中的一小部分。

    Mikrotik RB2011iL-RM Mikrotik RB2011iL-RM 包含一项新功能 - 以太网端口 10 上的电源注入器 - 它可以为其他支持 PoE 的设备供电，其电压与应用于该单元的电压相同。不用担心电源适配器和电缆！端口上的最大负载为 500mA。它由新的 Atheros 600MHz 74K MIPS 网络处理器提供支持，具有 64MB 的 RAM 和 Level4 RouterOS 许可证，以及五个千兆以太网端口和五个快速以太网端口。

    RouterBOARD 2011iL-RM 配备 1U 机架式机箱和电源。

    产品手册

    硬件规格：

    Details
    Product code RB2011iL-RM
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 443 x 92 x 44 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 60°C

    以太网测试结果

    RB2011iL-RM AR9344 1G&100M all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
    Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
    Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
    Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
    Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
    1. 所有测试均使用 Xena Networks 专用测试设备 (XenaBay) 完成，并根据 RFC2544 (Xena2544) 完成
    2. 最大吞吐量是在 64、512、1518 字节数据包大小的 0.1% 丢包容限下尝试 30 秒以上确定的
    3. 测试结果显示了设备的最大性能，并且使用上述硬件和软件配置即可达到，不同的配置很可能会导致较低的结果

  • Mikrotik RB3011UiAS-RM

    Mikrotik RB2011

    The Mikrotik RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

    The Mikrotik RB3011 Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

    The Mikrotik RB3011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    The Mikrotik RB3011 includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports.

    Product Manual

    HARDWARE SPECIFICATIONS:

    Details
    Product code RB3011UiAS-RM
    Architecture ARM 32bit
    CPU IPQ-8064
    CPU core count 2
    CPU nominal frequency 1.4 GHz
    Dimensions 443 x 92 x 44 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    IPsec hardware acceleration Yes
    Network 10/100/1000 Ethernet ports x 10

    Ethernet test results

    RB2011iL-RM AR9344 1G&100M all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
    Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
    Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
    Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
    Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

  • Mikrotik RB3011UiAS-RM

    Mikrotik RB3011 是一款全新的多端口设备，第一个 ARM 架构 CPU 获得比以往更高的性能。 RB3011 有十个千兆端口，分为两个开关组、一个 SFP 笼和第一个超高速全尺寸 USB 3.0 端口，用于添加存储或外部 3G/4G 调制解调器。

    Mikrotik RB3011 单元配备 1U 机架式外壳、触摸屏 LCD 面板、串行控制台端口和最后一个以太网端口上的 PoE 输出功能。

    Mikrotik RB3011 由RouterOS 提供支持，RouterOS 是一个功能齐全的路由操作系统，经过十五年的不断改进。 动态路由、热点、防火墙、MPLS、VPN、高级服务质量、负载平衡和绑定、实时配置和监控——这只是 RouterOS 支持的众多功能中的一部分。

    Mikrotik RB3011 包括一项新功能 - 以太网端口 10 上的电源注入器 - 它可以为其他支持 PoE 的设备供电，其电压与应用于该单元的电压相同。 不用担心电源适配器和电缆！ 端口上的最大负载为 500mA。 它由新的 Atheros 600MHz 74K MIPS 网络处理器提供支持，具有 64MB 的 RAM 和 Level4 RouterOS 许可证，以及五个千兆以太网端口和五个快速以太网端口。

    产品手册

    硬件规格：

    Details
    Product code RB3011UiAS-RM
    Architecture ARM 32bit
    CPU IPQ-8064
    CPU core count 2
    CPU nominal frequency 1.4 GHz
    Dimensions 443 x 92 x 44 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    IPsec hardware acceleration Yes
    Network 10/100/1000 Ethernet ports x 10

    以太网测试结果

    RB2011iL-RM AR9344 1G&100M all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
    Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
    Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
    Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
    Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
    1. 所有测试均使用 Xena Networks 专用测试设备 (XenaBay) 完成，并根据 RFC2544 (Xena2544) 完成
    2. 最大吞吐量是在 64、512、1518 字节数据包大小的 0.1% 丢包容限下尝试 30 秒以上确定的
    3. 测试结果显示了设备的最大性能，并且使用上述硬件和软件配置即可达到，不同的配置很可能会导致较低的结果

  • Mikrotik RB4011i WIFI

    Mikrotik RB2011

    The Mikotik RB4011 Wifi series - amazingly powerful 2.4G/5G wifi routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

    The Mikotik RB4011 Wifi uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

    Mikotik RB4011iGS+5HacQ2HnD-IN (WiFi model) is Dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

    We have two versions available.

    RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.

    Product Manual

    HARDWARE SPECIFICATIONS:

    Details
    Product code RB4011iGS+5HacQ2HnD-IN
    Architecture ARM 32bit
    CPU AL21400
    CPU core count 4
    CPU nominal frequency 1.4 GHz
    Dimensions 228 x 120 x 30 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 1 GB
    Storage size 512 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 45°C
    IPsec hardware acceleration Yes

    Ethernet test results

    RB4011iGS+5HacQ2HnD-IN AL21400 1G/S+ all port test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 806,4 9,792.9 2312,9 9,473.6 5509,7 2,821.0
    Bridging 25 bridge filter rules 806,4 9,792.9 1037,4 4,249.2 1153,2 590.4
    Routing none (fast path) 806,4 9,792.9 1923,3 7,877.8 5092,3 2,607.3
    Routing 25 simple queues 806,4 9,792.9 1046,6 4,286.9 960,3 491.7
    Routing 25 ip filter rules 593,7 7,209.9 625,2 2,560.8 564,6 289.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.



  • Mikrotik RB5009UG

    Mikrotik RB2011

    Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

    The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

    Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

    With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.



    Product Manual

    HARDWARE SPECIFICATIONS:

    tails
    Product code RB5009UG+S+IN
    Architecture ARM 64bit
    CPU 88F7040
    CPU core count 4
    CPU nominal frequency 350-1400 (auto) MHz
    RouterOS license 5
    Operating System RouterOS (v7 only)
    Size of RAM 1 GB
    Storage size 1 GB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C

    Ethernet test results

    RB5009UG+S+IN 88F7040 All port test (7.1beta6)
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 811.3 9852.5 2333.7 9558.9 5545.3 3016.7
    Bridging 25 bridge filter rules 811.3 9852.5 1526.7 6253.5 1488.2 809.6
    Routing none (fast path) 811.3 9852.5 2333.7 9558.9 4296 2337
    Routing 25 simple queues 811.3 9852.5 986.6 4041 1001.1 544.6
    Routing 25 ip filter rules 615.9 7479.1 624.3 2557.1 625.4 340.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.

  • Mikrotik RB5009UG

    常规性能翻倍：我们从 MikroTik 用户会议中收集您的反馈，打造完美的家庭实验室路由器：紧凑、强大、具有多种供电选项和高效冷却。RB5009 拥有一切，甚至更多！

    该板具有 9 个有线端口和一个全尺寸 USB 3.0。其中七个端口是千兆以太网，另一个是 2.5 千兆以太网，最后一个是 10G SFP+ 笼。所有端口都连接到功能强大的 Marvell Amethyst 系列交换芯片，该交换芯片具有 10 Gbps 全双工线路，通向 Marvell Armada 四核 ARMv8 1.4 GHz CPU。 CPU 和开关芯片都位于电路板的底部——因此机箱充当了一个巨大的散热器！

    主板配备 1GB DDR4 RAM 和 1GB NAND 存储。与我们其他外形相似的产品相比，这种端口和组件的组合在 CPU 负载较重的配置中提供了几乎两倍的性能。

    使用一套简单的安装配件，您可以在一个 1U 机架安装空间中安装四个这样的路由器！不再有服务器机房俄罗斯方块，只有纯粹的生产力。



    产品手册

    硬件规格：

    tails
    Product code RB5009UG+S+IN
    Architecture ARM 64bit
    CPU 88F7040
    CPU core count 4
    CPU nominal frequency 350-1400 (auto) MHz
    RouterOS license 5
    Operating System RouterOS (v7 only)
    Size of RAM 1 GB
    Storage size 1 GB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C

    以太网测试结果

    RB5009UG+S+IN 88F7040 All port test (7.1beta6)
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 811.3 9852.5 2333.7 9558.9 5545.3 3016.7
    Bridging 25 bridge filter rules 811.3 9852.5 1526.7 6253.5 1488.2 809.6
    Routing none (fast path) 811.3 9852.5 2333.7 9558.9 4296 2337
    Routing 25 simple queues 811.3 9852.5 986.6 4041 1001.1 544.6
    Routing 25 ip filter rules 615.9 7479.1 624.3 2557.1 625.4 340.2
    1. 所有测试均使用 Xena Networks 专用测试设备 (XenaBay) 完成，并根据 RFC2544 (Xena2544) 完成
    2. 最大吞吐量是在 64、512、1518 字节数据包大小的 0.1% 丢包容限下尝试 30 秒以上确定的
    3. 测试结果显示了设备的最大性能，并且是使用上述硬件和软件配置达到的，不同的配置很可能会导致较低的结果。

  • NetGate 4200

    Netgate SG1000

    The Netgate® 4200,4G DDR5 Ram, 16G storage. with pfSense Plus software is the most versatile security gateway in its class. The Netgate 4200 utilizes the blazing fast performance of 4-core Intel Atom C1110 CPU to achieve benchmark results up to three times faster in routing, firewall forwarding and IPsec VPN than the previous generation of security gateways. The Netgate 4200 delivers over 9.2 Gbps of L3 routing across four independent 2.5 GbE flexible WAN/LAN ports.

    Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.

    The Netgate 4200 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the Netgate 6100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.

    Product Manual

    Easy to use

    • Pre-loaded with pfSense Plus software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    HARDWARE SPECIFICATIONS:

    CPU

    Intel® Atom® C1110 @ 2.1 GHz w/AVX2

    CPU Cores

    Quad Core

    Physical Network I/O ports

    4 x 2.5 Gbps "direct" (unswitched) WAN/LAN ports (RJ45)

    1 x USB 3.0

    Storage

    16GB

    Memory

    4 GB DDR5

    Physical Expansion Card Slots

    1x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe)



    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    		 Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive - integrated aluminum chassis and heatsink

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

  • NetGate 4200

    Netgate SG1000

    Netgate® 4200、4G DDR5 RAM、16G 存储。 pfSense Plus 软件是同类产品中功能最齐全的安全网关。 Netgate 4200 利用 4 核 Intel Atom C1110 CPU 的超快性能，在路由、防火墙转发和 IPsec VPN 方面取得的基准测试结果比上一代安全网关快三倍。 Netgate 4200 通过四个独立的 2.5 GbE 灵活 WAN/LAN 端口提供超过 9.2 Gbps 的 L3 路由。

    预装的 pfSense plus 软件，是一种快速的网络安全解决方案，不受传统的年度合同的限制，不受许可费或人为的限制。 多功能性和较低的总拥有成本，这是一款低功耗系统，旨在实现稳定，长寿和可靠性。

    Product Manual



    易于使用

    • 预装 pfSense 系统，开箱即用。
    • 性能强大但外形尺寸较小，适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。


    总拥有成本低

    (TCO=Total cost of ownership)

    • 无人为的限制或附加组件，全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制，对用户，防火墙规则，或IPsec隧道。
    • 低功耗，节省成本，更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN，负载平衡，设备报告和监控。
    • 简单的包管理系统，添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接，使移动工作者安全连接，或连接到企业云端！
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版，在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense软件的设备可以配置为有状态包过滤防火墙、LAN 或 WAN 路由器、VPN设备、DHCP服务器、DNS服务器，也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的防火墙或路由器设备
    • 路由规则和策略，用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • 专属门户与 MAC 过滤，半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格



    CPU

    Intel® Atom® C1110 @ 2.1 GHz w/AVX2

    CPU Cores

    Quad Core

    Physical Network I/O ports

    4 x 2.5 Gbps "direct" (unswitched) WAN/LAN ports (RJ45)

    1 x USB 3.0

    Storage

    16GB

    Memory

    4 GB DDR5

    Physical Expansion Card Slots

    1x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe)



    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    		 Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive - integrated aluminum chassis and heatsink

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

  • NetGate 4200 MAX

    Netgate SG1000

    The Netgate® 4200,4G DDR5 Ram, 128G M.2 storage. with pfSense Plus software is the most versatile security gateway in its class. The Netgate 4200 utilizes the blazing fast performance of 4-core Intel Atom C1110 CPU to achieve benchmark results up to three times faster in routing, firewall forwarding and IPsec VPN than the previous generation of security gateways. The Netgate 4200 delivers over 9.2 Gbps of L3 routing across four independent 2.5 GbE flexible WAN/LAN ports.

    Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.

    The Netgate 4200 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the Netgate 6100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.

    Product Manual

    Easy to use

    • Pre-loaded with pfSense Plus software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    HARDWARE SPECIFICATIONS:

    CPU

    Intel® Atom® C1110 @ 2.1 GHz w/AVX2

    CPU Cores

    Quad Core

    Physical Network I/O ports

    4 x 2.5 Gbps "direct" (unswitched) WAN/LAN ports (RJ45)

    1 x USB 3.0

    Storage

    128GB M.2

    Memory

    4 GB DDR5

    Physical Expansion Card Slots

    1x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe)



    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    		 Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive - integrated aluminum chassis and heatsink

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

  • NetGate 4200 MAX

    Netgate SG1000

    Netgate® 4200、4G DDR5 RAM、128G M.2 存储。 pfSense Plus 软件是同类产品中功能最齐全的安全网关。 Netgate 4200 利用 4 核 Intel Atom C1110 CPU 的超快性能，在路由、防火墙转发和 IPsec VPN 方面取得的基准测试结果比上一代安全网关快三倍。 Netgate 4200 通过四个独立的 2.5 GbE 灵活 WAN/LAN 端口提供超过 9.2 Gbps 的 L3 路由。

    预装的 pfSense plus 软件，是一种快速的网络安全解决方案，不受传统的年度合同的限制，不受许可费或人为的限制。 多功能性和较低的总拥有成本，这是一款低功耗系统，旨在实现稳定，长寿和可靠性。

    Product Manual



    易于使用

    • 预装 pfSense 系统，开箱即用。
    • 性能强大但外形尺寸较小，适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。


    总拥有成本低

    (TCO=Total cost of ownership)

    • 无人为的限制或附加组件，全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制，对用户，防火墙规则，或IPsec隧道。
    • 低功耗，节省成本，更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN，负载平衡，设备报告和监控。
    • 简单的包管理系统，添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接，使移动工作者安全连接，或连接到企业云端！
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版，在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense软件的设备可以配置为有状态包过滤防火墙、LAN 或 WAN 路由器、VPN设备、DHCP服务器、DNS服务器，也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的防火墙或路由器设备
    • 路由规则和策略，用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • 专属门户与 MAC 过滤，半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格



    CPU

    Intel® Atom® C1110 @ 2.1 GHz w/AVX2

    CPU Cores

    Quad Core

    Physical Network I/O ports

    4 x 2.5 Gbps "direct" (unswitched) WAN/LAN ports (RJ45)

    1 x USB 3.0

    Storage

    128 GB M.2

    Memory

    4 GB DDR5

    Physical Expansion Card Slots

    1x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe)



    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    		 Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive - integrated aluminum chassis and heatsink

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

  • NetGate 6100

    Netgate SG1000

    Netgate 6100 设备可配置为安全设备防火墙，LAN 或 WAN 路由器，VPN 设备，DHCP 服务器，DNS 服务器和 IDS / IPS，并带有可选程序包，以低廉的价格提供高性能，无风扇，静音，高吞吐量的一线网络安全设备。

    预装的 pfSense plus 软件，是一种快速的网络安全解决方案，不受传统的年度合同的限制，不受许可费或人为的限制。 多功能性和较低的总拥有成本，这是一款低功耗系统，旨在实现稳定，长寿和可靠性。

    Product Manual



    易于使用

    • 预装 pfSense 系统，开箱即用。
    • 性能强大但外形尺寸较小，适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。


    总拥有成本低

    (TCO=Total cost of ownership)

    • 无人为的限制或附加组件，全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制，对用户，防火墙规则，或IPsec隧道。
    • 低功耗，节省成本，更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN，负载平衡，设备报告和监控。
    • 简单的包管理系统，添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接，使移动工作者安全连接，或连接到企业云端！
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版，在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense软件的设备可以配置为有状态包过滤防火墙、LAN 或 WAN 路由器、VPN设备、DHCP服务器、DNS服务器，也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的防火墙或路由器设备
    • 路由规则和策略，用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • 专属门户与 MAC 过滤，半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格



    CPU

    Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

    CPU Cores

    Quad Core

    Physical Network I/O ports

    (2) 10 Gbps SFP+ cage (WAN)

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

    Storage

    16GB eMMC (onboard - soldered)  upgradable to 128GB NVMe M.2 SSD with 6100 Max

    Memory

    8 GB DDR4 w/o ECC, single channel

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

    1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.

    10 x 7.88 x 1.88 inches

    254 x 200 x 47.63 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications FCC (Class B), IEC / CE, CB, UL, RoHS, RCM



  • NetGate 6100

    Netgate SG1000

    The Netgate® 6100 is one of the most versatile security gateways in its class. It is ideal for home, remote workers, and small businesses who require flexible port configurations for high-speed WAN and LAN connectivity. The 6100 combines the power of an Intel C3558 Quad Core CPU with integrated QuickAssist & AES-NI, and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 Independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports.

    Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.

    The Netgate 6100 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the Netgate 6100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.

    Product Manual



    Easy to use

    • Pre-loaded with pfSense Plus software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    HARDWARE SPECIFICATIONS:

    CPU

    Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

    CPU Cores

    Quad Core

    Physical Network I/O ports

    (2) 10 Gbps SFP+ cage (WAN)

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

    Storage

    16GB

    Memory

    8 GB DDR4

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

    1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.

    10 x 7.88 x 1.88 inches

    254 x 200 x 47.63 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications FCC (Class B), IEC / CE, CB, UL, RoHS, RCM

  • NetGate 6100 MAX

    Netgate SG1000

    The Netgate® 6100 MAX is one of the most versatile security gateways in its class. It is ideal for home, remote workers, and small businesses who require flexible port configurations for high-speed WAN and LAN connectivity. The 6100 combines the power of an Intel C3558 Quad Core CPU with integrated QuickAssist & AES-NI, 128G storage and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 Independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports.

    Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.

    The Netgate 6100 MAX Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price. With preloaded pfSense software, the Netgate 6100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Built with performance, versatility, and low total cost of ownership in mind, this is a low power system built for long life and solid reliability in a compact footprint.

    Product Manual

    Easy to use

    • Pre-loaded with pfSense Plus software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    HARDWARE SPECIFICATIONS:

    CPU

    Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

    CPU Cores

    Quad Core

    Physical Network I/O ports

    (2) 10 Gbps SFP+ cage (WAN)

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

    Storage

    128GB NVMe M.2 SSD with Netgate 6100 Max

    Memory

    8 GB DDR4

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

    1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.

    10 x 7.88 x 1.88 inches

    254 x 200 x 47.63 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications FCC (Class B), IEC / CE, CB, UL, RoHS, RCM

  • NetGate 6100 MAX

    Netgate SG1000

    Netgate 6100 MAX 设备可配置为安全设备防火墙，LAN 或 WAN 路由器，VPN 设备，DHCP 服务器，DNS 服务器和 IDS / IPS，并带有可选程序包，以低廉的价格提供高性能，无风扇，静音，高吞吐量的一线网络安全设备。

    预装的 pfSense plus 软件，是一种快速的网络安全解决方案，不受传统的年度合同的限制，不受许可费或人为的限制。 多功能性和较低的总拥有成本，这是一款低功耗系统，旨在实现稳定，长寿和可靠性。

    Product Manual



    易于使用

    • 预装 pfSense 系统，开箱即用。
    • 性能强大但外形尺寸较小，适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。


    总拥有成本低

    (TCO=Total cost of ownership)

    • 无人为的限制或附加组件，全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制，对用户，防火墙规则，或IPsec隧道。
    • 低功耗，节省成本，更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN，负载平衡，设备报告和监控。
    • 简单的包管理系统，添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接，使移动工作者安全连接，或连接到企业云端！
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版，在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense软件的设备可以配置为有状态包过滤防火墙、LAN 或 WAN 路由器、VPN设备、DHCP服务器、DNS服务器，也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的防火墙或路由器设备
    • 路由规则和策略，用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • 专属门户与 MAC 过滤，半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格



    CPU

    Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

    CPU Cores

    Quad Core

    Physical Network I/O ports

    (2) 10 Gbps SFP+ cage (WAN)

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

    Storage

    128GB NVMe M.2 SSD with 6100 Max

    Memory

    8 GB DDR4

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

    1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    2 x USB 3.0 jacks (USB-A female) (located on Right Side Rear)

    LED

    3 x RGB LED(s) software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.

    10 x 7.88 x 1.88 inches

    254 x 200 x 47.63 mm

    Mounting

    Optional wall mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient
    Certifications FCC (Class B), IEC / CE, CB, UL, RoHS, RCM



  • NetGate SG-3100

    Netgate SG1000

    (EOS :end of sales)

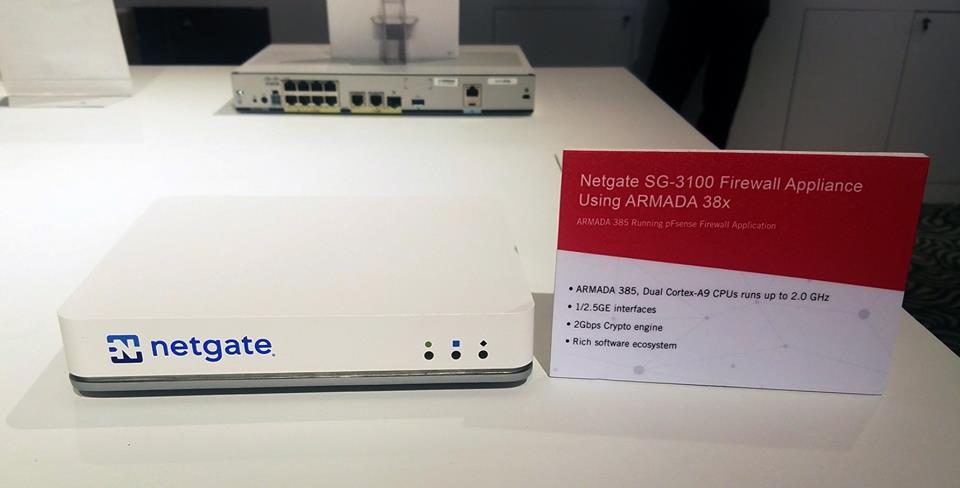

    The Netgate® SG-3100 Security Gateway Appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security appliance at an excellent price in a compact footprint. With preloaded pfSense software, the SG-3100 is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. Flexibility is built in to the SG-3100 with upgrade options such as a m.2 SATA SSD, LTE cellular, or mPCIe Wi-Fi.

    Product Manual





    Easy to use

    • Pre-loaded with pfSense software, ready to use right out of the box.
    • Small form-factor, so it fits about anywhere.
    • Easy GUI management. Manage pfSense settings through our web-based GUI.

    Low total cost of ownership

    • No artificial limits or add-ons required to make your system fully functional.
    • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
    • Low power requirements to save money and be more eco-friendly.

    Grows with you

    • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
    • Simple package management system to add powerful functions and features.

    Secure remote access

    • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
    • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

    Common use cases

    • SMB to Medium Sized Networks
    • Small to Medium Sized Branch Office
    • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
    • Home or Commercial High-Speed Gigabit Connections
    • Multiple VPN Connections

    Software Features

    pfSense software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

    • Stateful packet filtering firewall or pure router
    • Routing policy per gateway and per-rule for failover and load balancing
    • Transparent layer 2 firewall
    • Support for IPV6, NAT, BGP
    • Captive portal with MAC filtering, RADIUS support, etc
    • VPN: IPsec, OpenVPN, L2TP
    • Dynamic DNS client
    • Reporting and monitoring features with real time information

    Technical Specifications

    CPU ARM v7 Cortex-A9 @ 1.6 GHz with NEON SIMD and FPU
    CPU Cores 2
    Memory Options 2GB DDR4L Non ECC
    Storage Options 8GB eMMC Flash on board
    Network Interfaces 2x 1GbE, configured as dual WAN or one WAN one LAN
    four-port 1 gbps Marvell 88E6141 switch, uplinked at 2.5 gbps to the third port on the SoC for LAN.
    Network Expansion Options None
    USB Ports 1x 3.0
    Console Port Mini USB (Cable included)
    Max Active Connections 1.8 Million
    Power External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 3.33A, threaded barrel connector
    AC Inlet: IEC320-C14 (3 PIN)
    Power Cord: One US, UK, EU or ANZ power cord included
    US Power Cord: NEMA 5-15P to IEC320-C13
    UK Power Cord: BS 1363 to IEC320-C13
    EU Power Cord: CEE7/16 to IEC320-C13
    ANZ Power Cord: AS 3112 to IEC320-C13
    Case Desktop case
    Dimensions 1.56" tall x 7" deep x 8" wide
    Cooling Passive
    Operating Temperature 0°C (32°F) to 65°C (149°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 5W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus

  • NetGate SG-3100

    Netgate SG1000

    (EOS: end of sales)

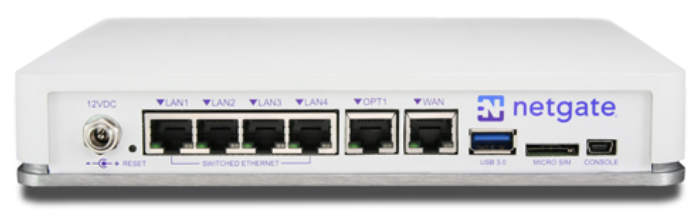

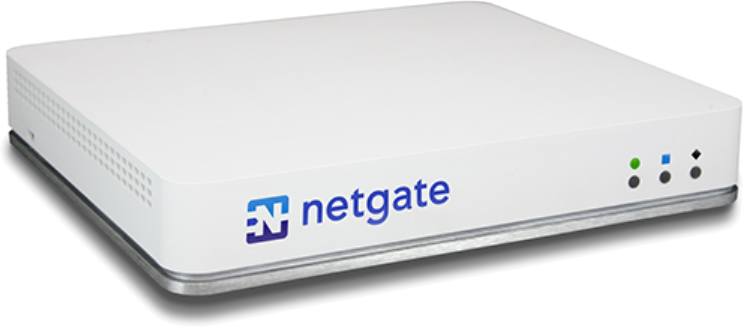

    Netgate® SG-3100     下一代防火墙, VPN/DHCP/DNS 服务器和 IDS / IPS，并带有可选软件包，经济的价格，高性能，高吞吐量的下一代安全设备。 预装的 pfSense OS，SG-3100 是一种快速的网络安全解决方案，不受传统的年度合同限制。

    SG-3100 内置了灵活的升级选项，例如 m.2 SATA SSD，LTE 蜂窝网络或 mPCIe Wi-Fi。

    Product Manual


    易于使用

    • 预装 pfSense 系统，开箱即用。
    • 性能强大但外形尺寸较小，适合任何地方安装。
    • 简单的 GUI 管理界面。通过基于 Web 的 GUI 图形化管理界面管理 pfSense 全部设置。

    总拥有成本低

    (TCO=Total cost of ownership)

    • 无人为的限制或附加组件，全功能系统开放性。
    • 无额外的使用限制及基于功能的定价。没有预设限制，对用户，防火墙规则，或IPsec隧道。
    • 低功耗，节省成本，更加环保。

    与企业成长

    • 灵活配置同时支持企业级 VPN，负载平衡，设备报告和监控。
    • 简单的包管理系统，添加强大的功能和特性。

    安全的远程访问

    • 通过办公室之间的加密虚拟专用网(VPN) 连接，使移动工作者安全连接，或连接到企业云端！
    • 使用内置的 Amazon VPC 向导轻松地与 Amazon EC2 云实例建立VPN连接。

    常规用户案例

    • 中小型网络
    • 中小型分公司
    • 托管服务提供者(MSP) /托管安全服务提供者(MSSP)
    • 家庭或商业高速千兆连接
    • 多个分公司 VPN 连接

    软件功能

    pfSense 软件是一个领先的基于 FreeBSD 的开源防火墙和路由器发行版，在功能上可与昂贵的私有商业防火墙相竞争。基于pfSense软件的设备可以配置为有状态包过滤防火墙、LAN 或 WAN 路由器、VPN设备、DHCP服务器、DNS服务器，也可以配置为其他应用程序和专用设备。 下一代 pfSense 安全防火墙特点包括:

    • 包含状态包过滤的防火墙或路由器设备
    • 路由规则和策略，用于故障转移和负载平衡
    • 透明二层防火墙 支持 IPV6, NAT, BGP
    • 专属门户与 MAC 过滤，半径支持等
    • VPN: IPsec, OpenVPN, L2TP
    • 动态DNS客户端
    • 具有实时信息的报告和监视功能

    技术规格

    CPU ARM v7 Cortex-A9 @ 1.6 GHz with NEON SIMD and FPU
    CPU Cores 2
    Memory Options 2GB DDR4L Non ECC
    Storage Options 8GB eMMC Flash on board
    Network Interfaces 2x 1GbE, configured as dual WAN or one WAN one LAN
    four-port 1 gbps Marvell 88E6141 switch, uplinked at 2.5 gbps to the third port on the SoC for LAN.
    Network Expansion Options None
    USB Ports 1x 3.0
    Console Port Mini USB (Cable included)
    Max Active Connections 1.8 Million
    Power External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 3.33A, threaded barrel connector
    AC Inlet: IEC320-C14 (3 PIN)
    Power Cord: One US, UK, EU or ANZ power cord included
    US Power Cord: NEMA 5-15P to IEC320-C13
    UK Power Cord: BS 1363 to IEC320-C13
    EU Power Cord: CEE7/16 to IEC320-C13
    ANZ Power Cord: AS 3112 to IEC320-C13
    Case Desktop case
    Dimensions 1.56" tall x 7" deep x 8" wide
    Cooling Passive
    Operating Temperature 0°C (32°F) to 65°C (149°F)
    Hardware Warranty 12 Months
    Certifications CE, FCC, RoHS, UL
    Power Consumption 5W (idle)
    Support Options Professional, Enterprise, and Enterprise Plus
