NetGate XG-1541 HA

Netgate SG1000

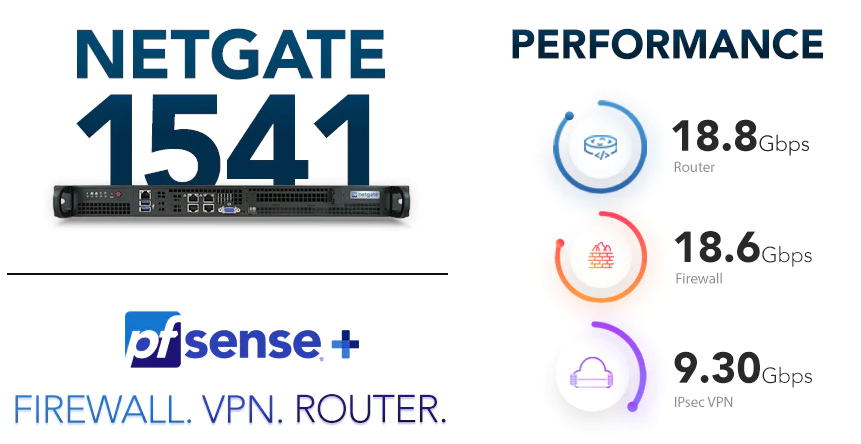

The Netgate XG-1541 1U HA  Next Generation Security Gateway Appliance High Availability dual-unit system is designed for fault tolerance and failover to prevent loss of critical services in case of hardware or software failure. It was created as an excellent solution for medium to large business to provide flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc. With preloaded pfSense+ software, the XG-1541 1U is a fast networking security solution unencumbered by traditional annual contracts, licensing fees, or artificial limitations. It can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS autosense, autodetect, autoblock network threat with optional packages to deliver a high performance, high throughput front-line security appliance.



Easy to use

  • Pre-loaded with pfSense+ software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense+ settings through our web-based GUI.

Low total cost of ownership

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

Grows with you

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.

Secure remote access

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

Common use cases

  • Medium to Big Sized Networks, Data Center
  • Medium to Big Sized Branch Office
  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
  • Home or Commercial High-Speed Gigabit Connections
  • Multiple VPN Connections

Software Features

pfSense+ software is a leading open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense+ software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense+ security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information



Technical Specifications

CPU Intel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC
CPU Cores 8
Memory Options 16GB~32GB DDR4 ECC RDIMM
Storage Options 500GB
2x 256GB RAID 1
Network Interfaces Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Network Expansion Options 4-Port Intel GbE
2-port Chelsio SFP+ Expansion
USB Ports 2x 3.0 ports
Console Port VGA
Max Active Connections 16 Million
Power 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
Case Standard 19" 1U rack mount
Dimensions 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
Cooling Active
Operating Temperature 10°C to 35°C
Hardware Warranty 12 months
Certifications CE Emission, FCC, RoHS, UL
Power Consumption 20W (idle)
Support Options Professional, Enterprise, and Enterprise Plus



Global TAC Support
